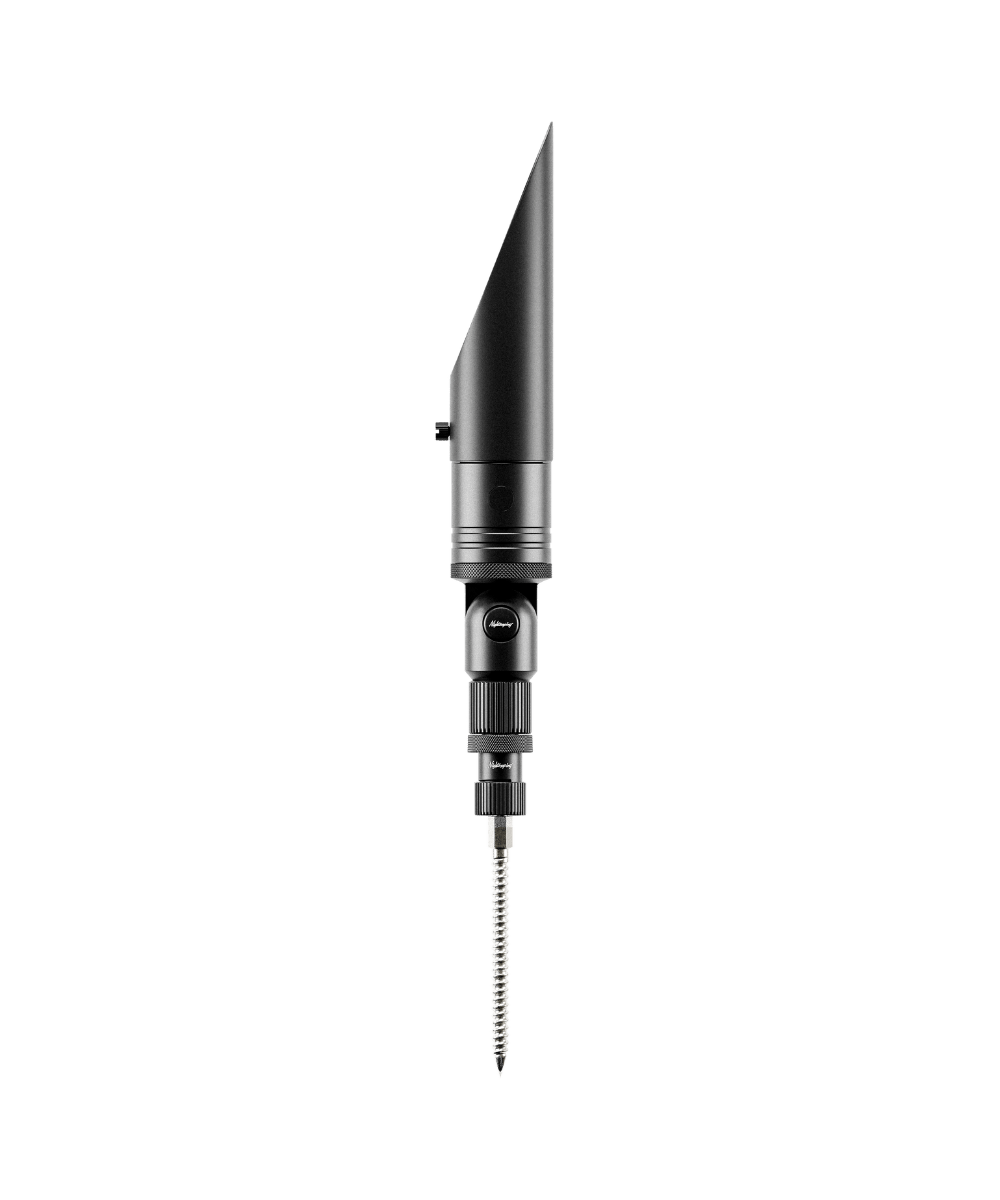

Tree Mount Power Base Adjustable Knuckle Assembled

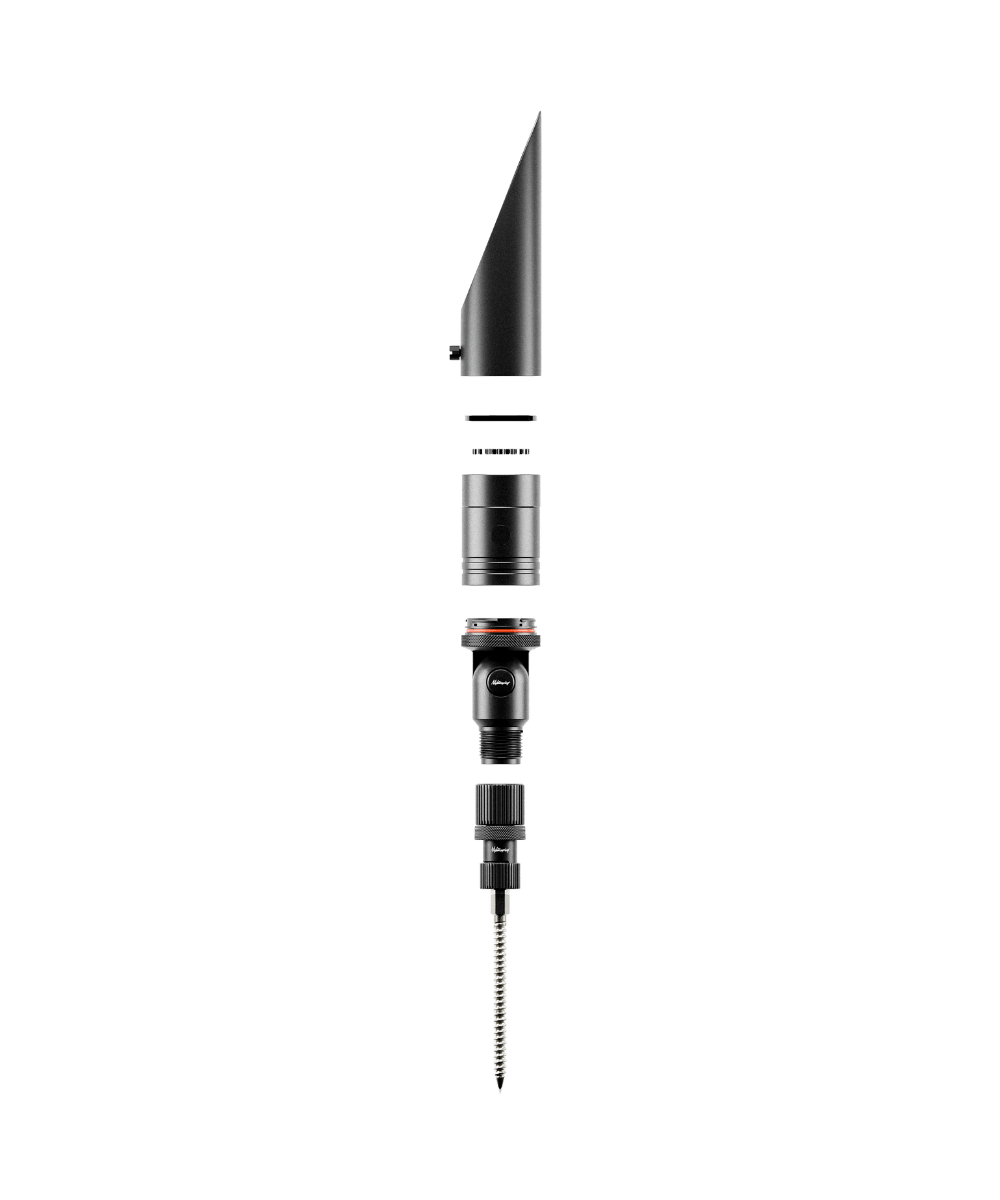

Tree Mount Power Base Adjustable Knuckle Extended

Tree Light

Locklin Series•Pre-Built Fixtures

$605.08

The perfect downlight built from Nightscaping’s modular components. Includes the Tree Light Mount Power Base, Adjustable Knuckle, Adjustable LED Module, and Tree Light Shroud for precise, low-glare illumination from the canopy above.

CHS011 – Treet Light Mount Power Base Front

Tree Light Power Base

Nightscaping’s Tree Mount Power Base is built on Nightscaping's patent pending Twist-lock connection system. It includes a one of a kind, custom designed, stainless steel hanger bolt that securely attaches to the tree trunk. Featuring a 50’ lead and integrated locking channels, it anchors the Locklin Series fixtures securely for elegant downlighting in tree canopies or elevated installs.

Adjustable Knuckle

This wireless knuckle when combined with the Locklin Series Power Bases allows for 360° fixture rotation and tilt. The push-button adjustability and aerospace-grade gold connectors make it like nothing else on the market. Built to last, it provides ultimate control for aiming the Locklin fixtures with precision and ease.

Adaptive LED Module

The Locklin Series, Twist-lock, LED Module offers push-button toggling between 2700K and 3000K, with adjustable output at 3W, 5W, or 7W. Integrated, interchangeable optics of 7˚, 15˚, 36˚, 60˚ and 120˚(achieved by removing lens), honeycomb louver, and gold-plated connectors ensure tool-free installation and professional-grade performance.

Tree Light Shroud

Purpose-built for downlighting from elevated positions, the Tree Light Shroud provides maximum glare-control especially in tree mounted downlighting applications. It can also be used for uplighting where additional light control is desired.

Additional Info

Patented Modular Design:
Built on Nightscaping’s Twist-lock system, the Tree Light assembles entirely without tools. Each component—Power Base, Knuckle, LED Module, and Shroud—connects via gold-plated aerospace-certified pins to deliver a corrosion-proof, vibration-resistant lighting solution made for elevated installs.

Adjustable Color Temperature:
Push-button toggle between 2700K and 3000K
(Hold 5 seconds to switch)

Adjustable Lumen Output:
Push-button control:
• Press once: 3W
• Press twice: 5W
• Press three times: 7W

Lumen Output (2700K):
• 3W – 170 lm
• 5W – 292 lm
• 7W – 399 lm

Lumen Output (3000K):
• 3W – 180 lm
• 5W – 310 lm
• 7W – 425 lm

Wireless Knuckle:
Adjustable knuckle with 360° rotation and vertical tilt. Push-button locking for tool-free aiming from the canopy.

Optics:
• 60° optic pre-installed.
• 36° optic included.
• Optional 15° and 7° sold separately.
• 120° beam achieved by removing optics.
• All lenses are color-coded for easy field identification.

Glare Control:
Honeycomb Louver included to soften output and eliminate hot spots.

Power Base Wire Lead:
50’ detachable wire lead included with Tree Mount Power Base for long canopy runs and high branch access.

Shroud:
Extended Tree Light Shroud designed specifically for elevated, glare-free downlighting and moonlighting effects.

Certifications:
ETL Listed
IP68 Rated
CRI: 93.4
TM-30 RF: 94
TM-30 RG: 99
Power Factor: 0.893 @ 12VAC

Do you need a professional installer? Contact us now!

Built to Outperform.

Engineered to Endure.

The Locklin Landscape Lighting Series is a modular lighting solution designed to make outdoor illumination effortless for both professionals and DIY enthusiasts. Its innovative architecture features core components that twist and lock together in seconds—no tools, no rewiring, just pure simplicity.
