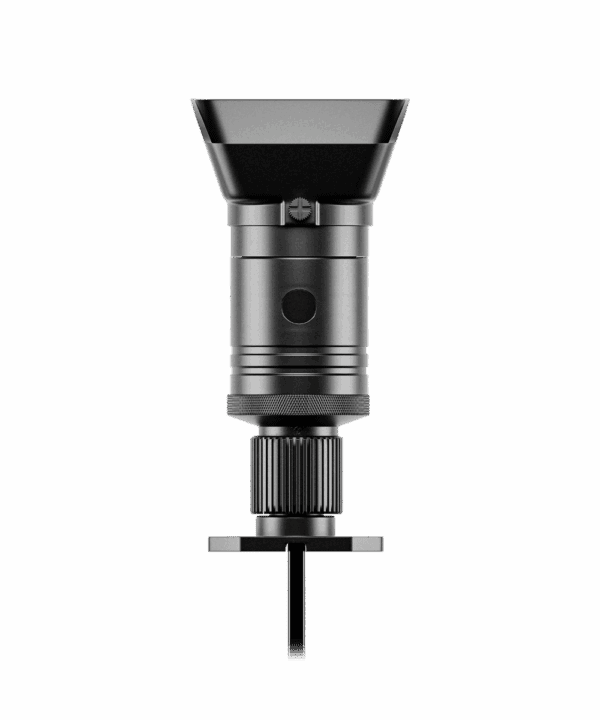

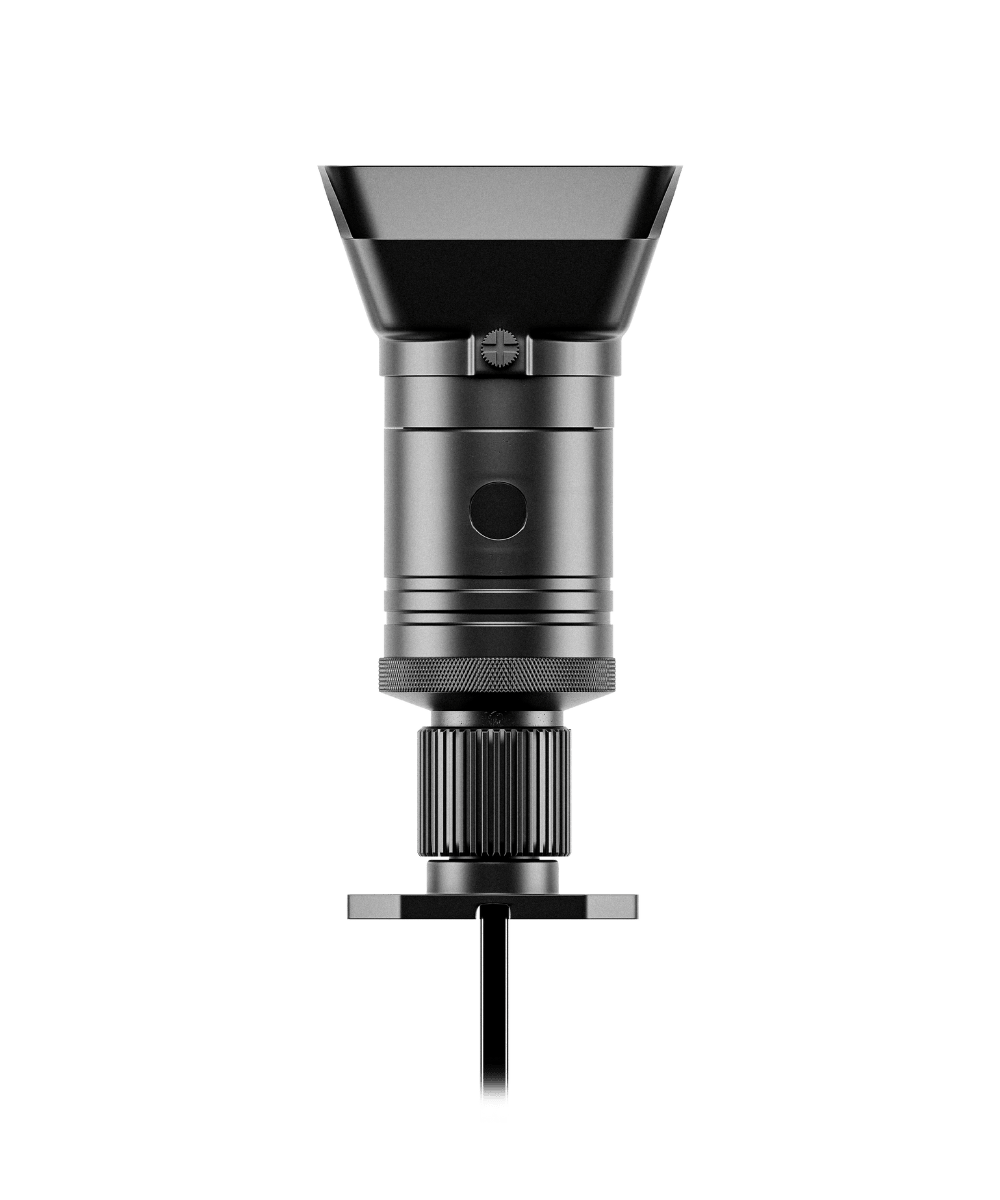

Surface Mount Power Base - Fixed Knuckle Assembled (2)

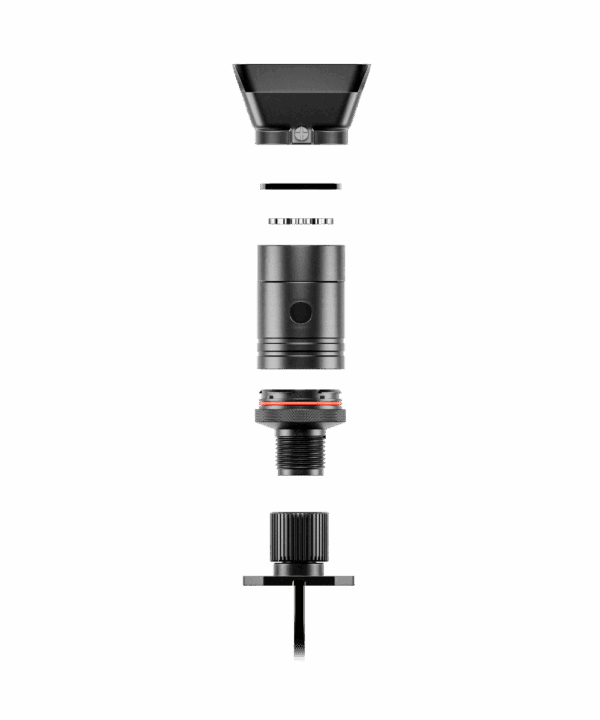

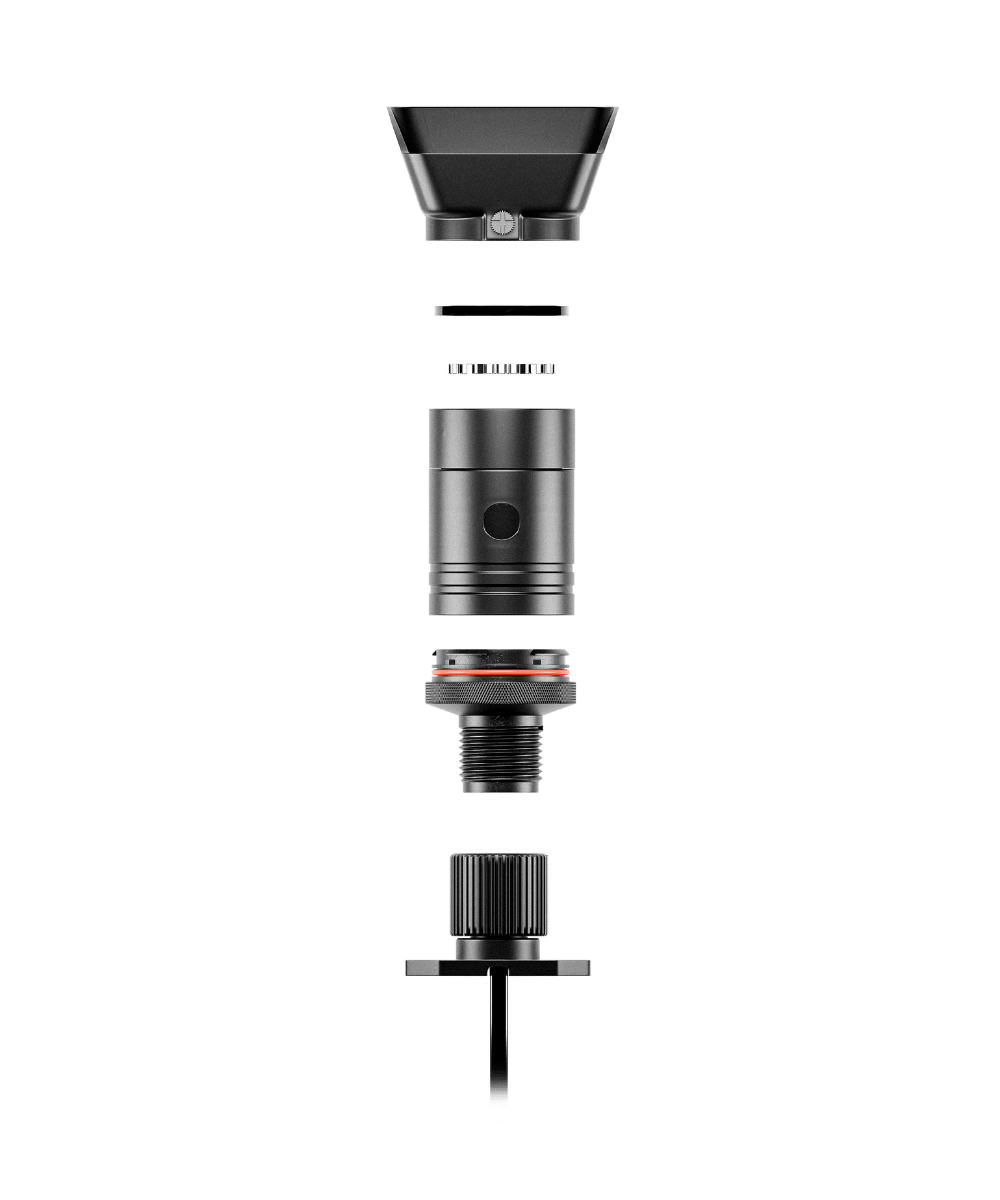

Surface Mount Power Base - Fixed Knuckle Extended (2)

Surface Mount Wash Light with Fixed Knuckle

Locklin Series•Pre-Built Fixtures

From: $436.92

This wide-beam fixture brings smooth, ambient wash lighting to walls and small trees. The fixed knuckle delivers consistent uplighting coverage for columns, garden art, and low architectural features that are isolated in hardscape or solid surface areas where a ground stake cannot be used.

Surface Mount Power Base

Engineered for solid surface mounting, the Surface Mount Power Base with Nightscaping's patent pending Twist-lock connection system offers stable fixture placement on most surfaces. With a 25’ lead and modular compatibility, it's the ideal solution for mounting fixtures to concrete, wood, and other structural elements.

Fixed Knuckle

Nightscaping’s Fixed Knuckle provides a clean, locked-in-place solution for applications where directional lighting isn't needed, such as architectural uplighting and wall grazing. It ensures a compact profile while maintaining the Locklin Series’ signature Twist-lock wireless modularity.

Adaptive LED Module

The Locklin Series, Twist-lock, LED Module offers push-button toggling between 2700K and 3000K, with adjustable output at 3W, 5W, or 7W. Integrated, interchangeable optics of 7˚, 15˚, 36˚, 60˚ and 120˚(achieved by removing lens), honeycomb louver, and gold-plated connectors ensure tool-free installation and professional-grade performance.

Optical Lens

These interchangeable optical lenses allow for customizable beam angles—7°, 15°, 36°, and 60°—to match any lighting application within the Locklin Series.

Yes, Add Options from $12.92

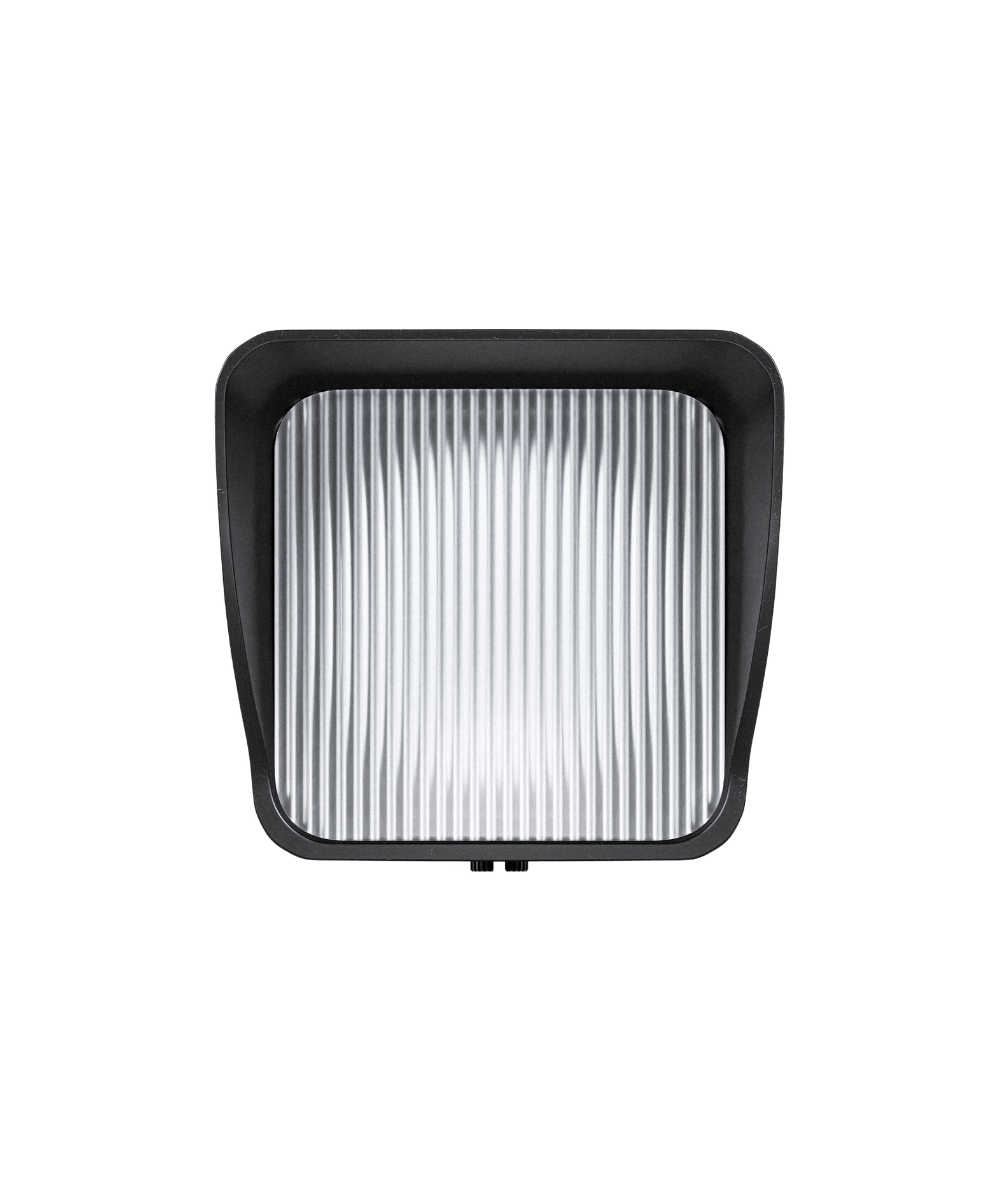

Wash Light Shroud

The Wash Light Shroud offers a wider beam with its built-in linear spread lens. This offers soft, ambient lighting across plant beds, walls, and pathways. A go-to choice for balanced, subtle illumination with architectural appeal.

Additional Info

Patented Modular Design:
Built with Locklin’s Twist-lock system, this surface-mounted fixture assembles wire-free with corrosion-resistant gold-plated connectors. Designed to install securely onto solid surfaces and other architectural surfaces.

Adjustable Color Temperature:
Push-button toggle between 2700K and 3000K
(Hold 5 seconds to switch)

Adjustable Lumen Output:
• Press once: 3W
• Press twice: 5W
• Press three times: 7W

Lumen Output (2700K):
• 3W – 170 lm
• 5W – 292 lm
• 7W – 399 lm

Lumen Output (3000K):
• 3W – 180 lm
• 5W – 310 lm
• 7W – 425 lm

Fixed Knuckle:
Delivers a consistent, non-adjustable beam angle—ideal for softly washing surfaces of smaller trees, sculptures, and architectural features and walls.

Optics:
• 60° optic pre-installed.
• 36° optic included.
• Optional 15° and 7° available separately.
• 120° spread achieved by removing optics.
• Color-coded lenses for easy identification.

Power Base Wire Lead:
25’ lead included with Surface Mount Power Base.

Certifications:
ETL Listed
IP68 Rated
CRI: 93.4
TM-30 RF: 94
TM-30 RG: 99
Power Factor: 0.893 @ 12VAC

Do you need a professional installer? Contact us now!

Built to Outperform.

Engineered to Endure.

The Locklin Landscape Lighting Series is a modular lighting solution designed to make outdoor illumination effortless for both professionals and DIY enthusiasts. Its innovative architecture features core components that twist and lock together in seconds—no tools, no rewiring, just pure simplicity.
