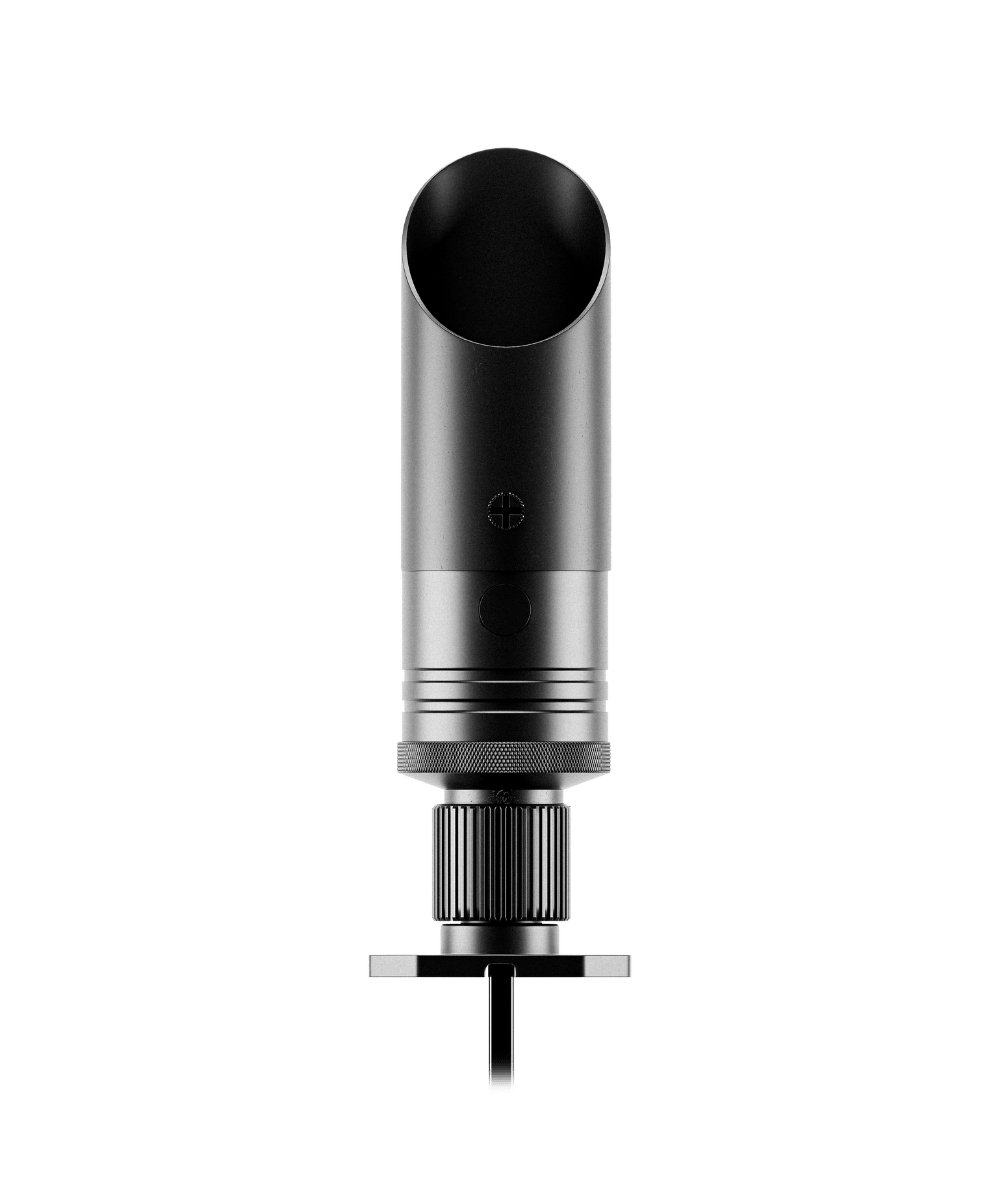

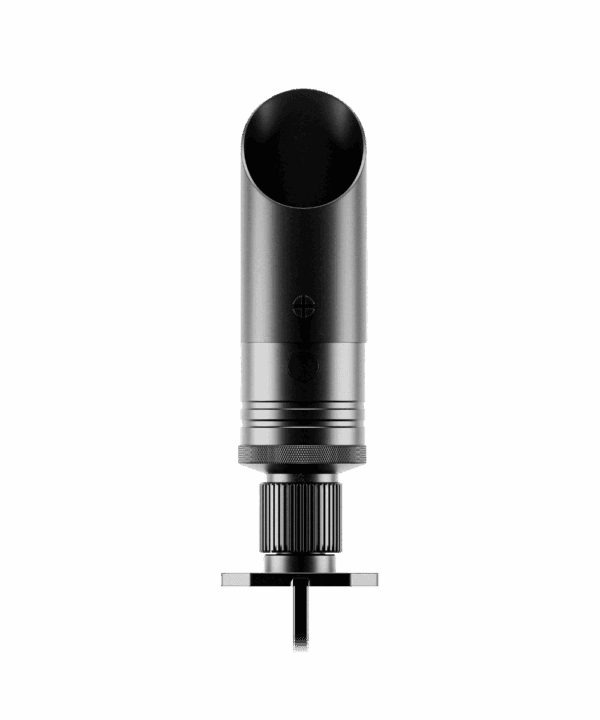

Surface Mount Power Base - Fixed Knuckle Assembled

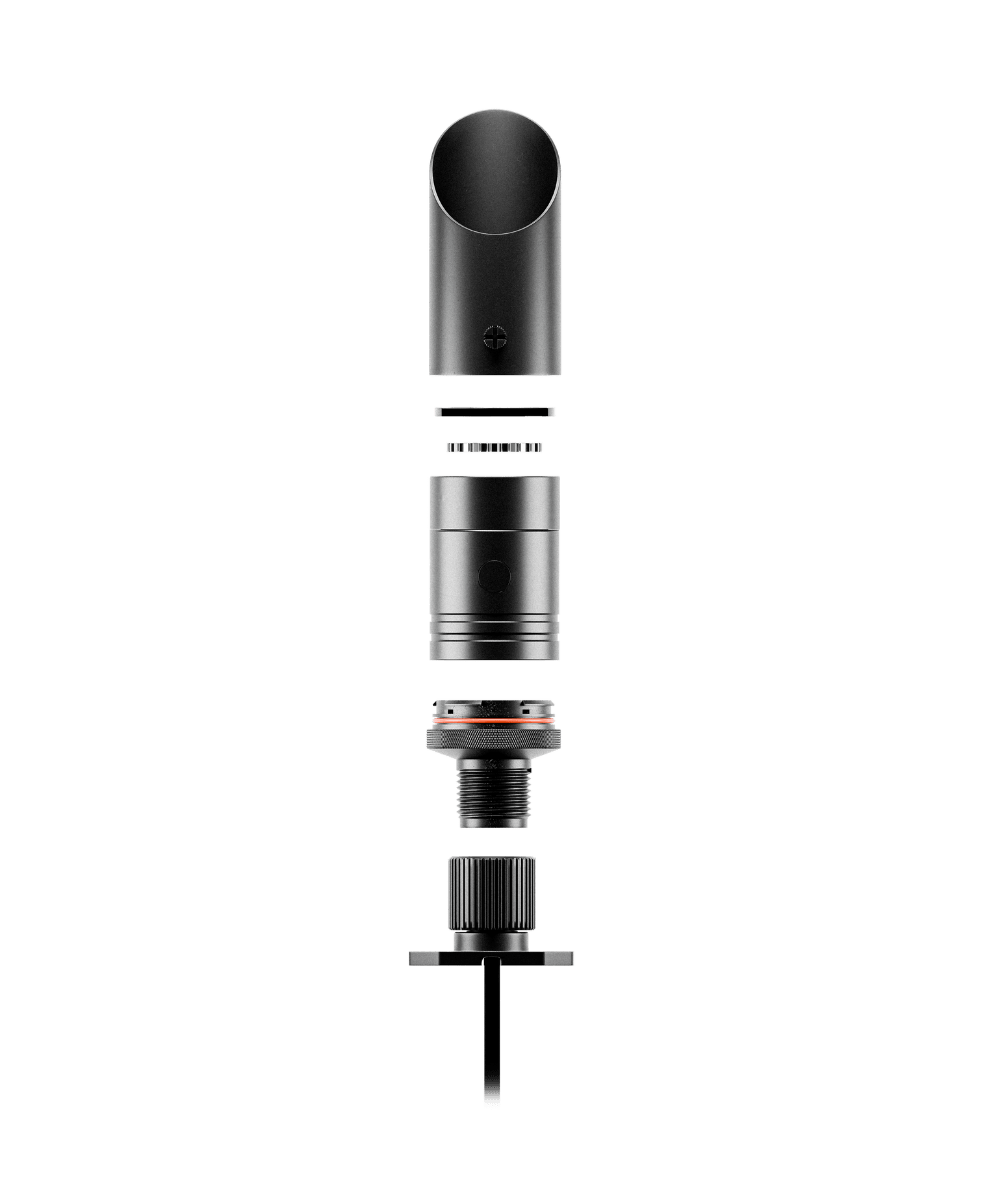

Surface Mount Power Base - Fixed Knuckle Extended

Surface Mount Bullet Light with Fixed Knuckle

Locklin Series•Pre-Built Fixtures

From: $410.63

Designed for clean architectural uplighting, this fixture delivers precise beam direction from a fixed position. Mounted to patios or walls, its compact form and Twist-lock tool-free assembly make it a smart, set-it-and-forget-it solution.

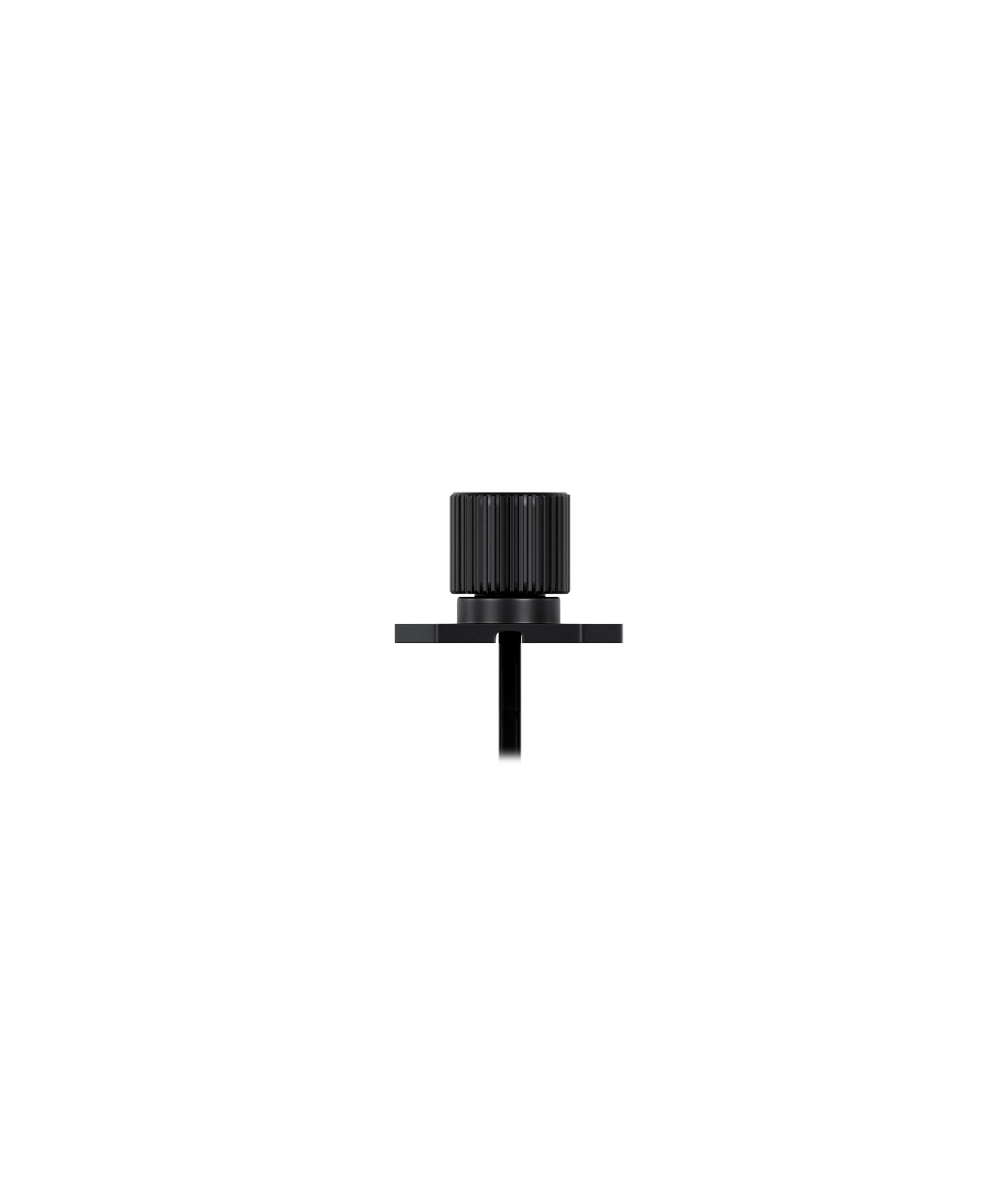

Surface Mount Power Base

Engineered for solid surface mounting, the Surface Mount Power Base with Nightscaping's patent pending Twist-lock connection system offers stable fixture placement on most surfaces. With a 25’ lead and modular compatibility, it's the ideal solution for mounting fixtures to concrete, wood, and other structural elements.

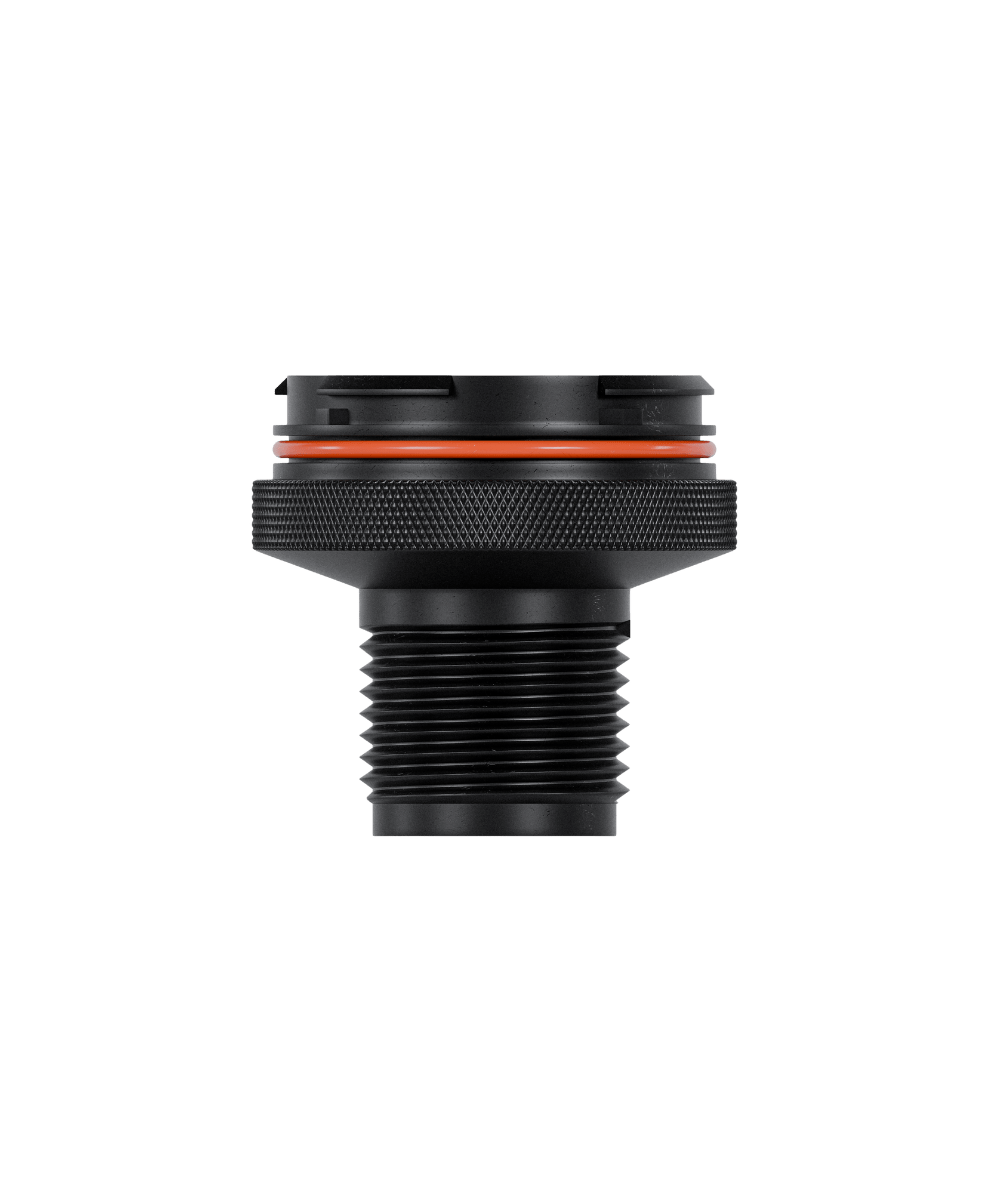

Fixed Knuckle

Nightscaping’s Fixed Knuckle provides a clean, locked-in-place solution for applications where directional lighting isn't needed, such as architectural uplighting and wall grazing. It ensures a compact profile while maintaining the Locklin Series’ signature Twist-lock wireless modularity.

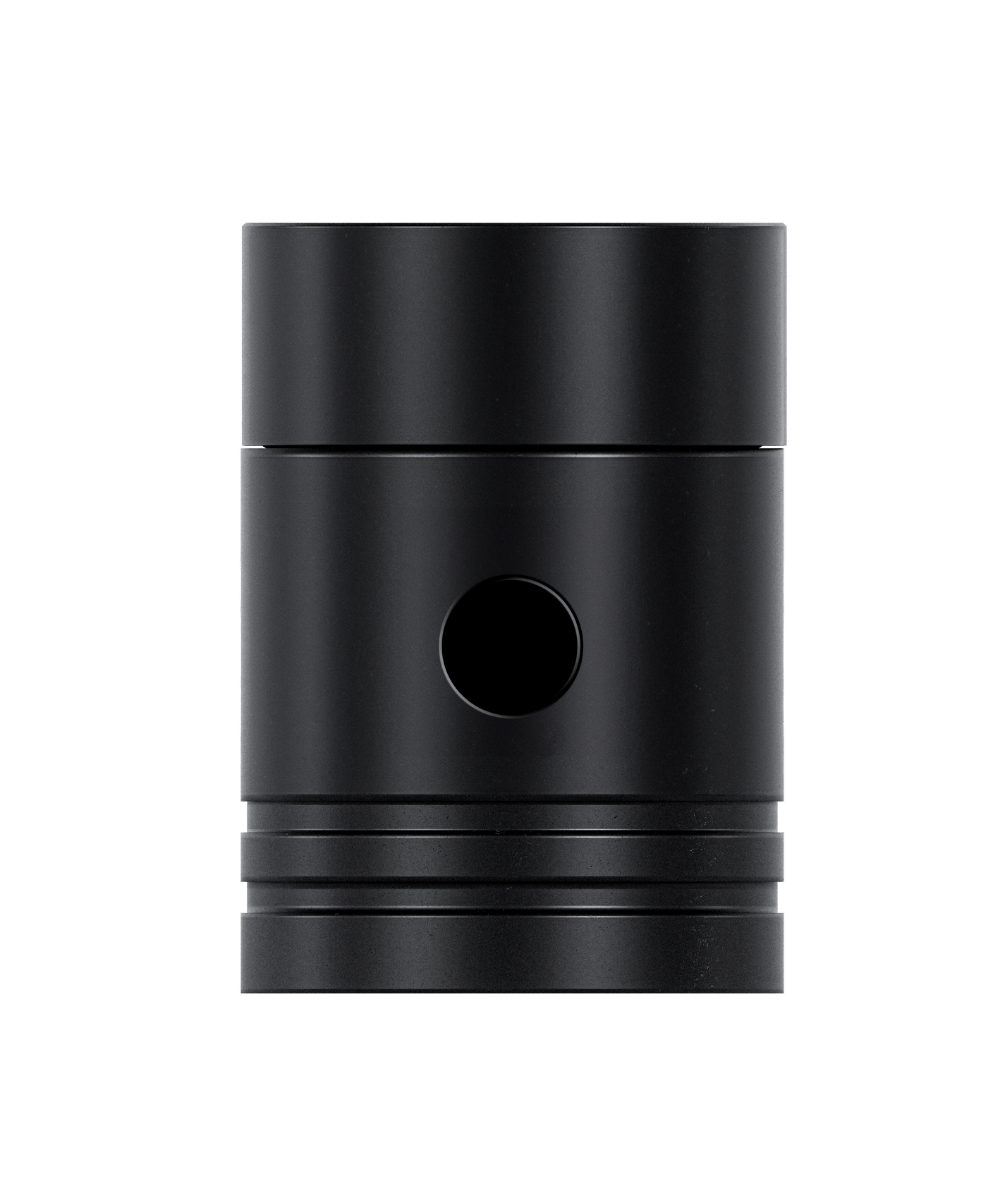

Adaptive LED Module

The Locklin Series, Twist-lock, LED Module offers push-button toggling between 2700K and 3000K, with adjustable output at 3W, 5W, or 7W. Integrated, interchangeable optics of 7˚, 15˚, 36˚, 60˚ and 120˚(achieved by removing lens), honeycomb louver, and gold-plated connectors ensure tool-free installation and professional-grade performance.

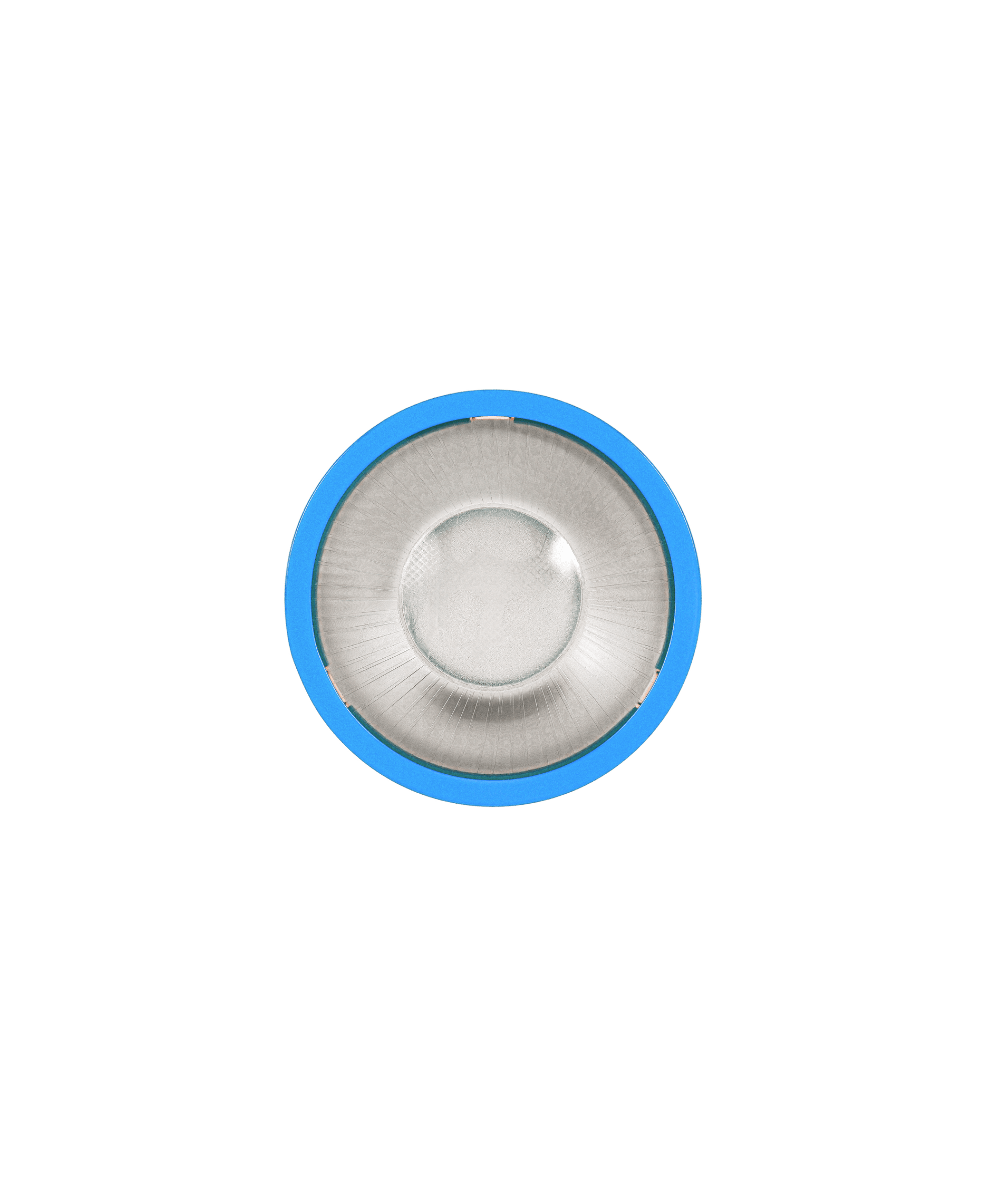

Optical Lens

These interchangeable optical lenses allow for customizable beam angles—7°, 15°, 36°, and 60°—to match any lighting application within the Locklin Series.

Yes, Add Options from $12.92

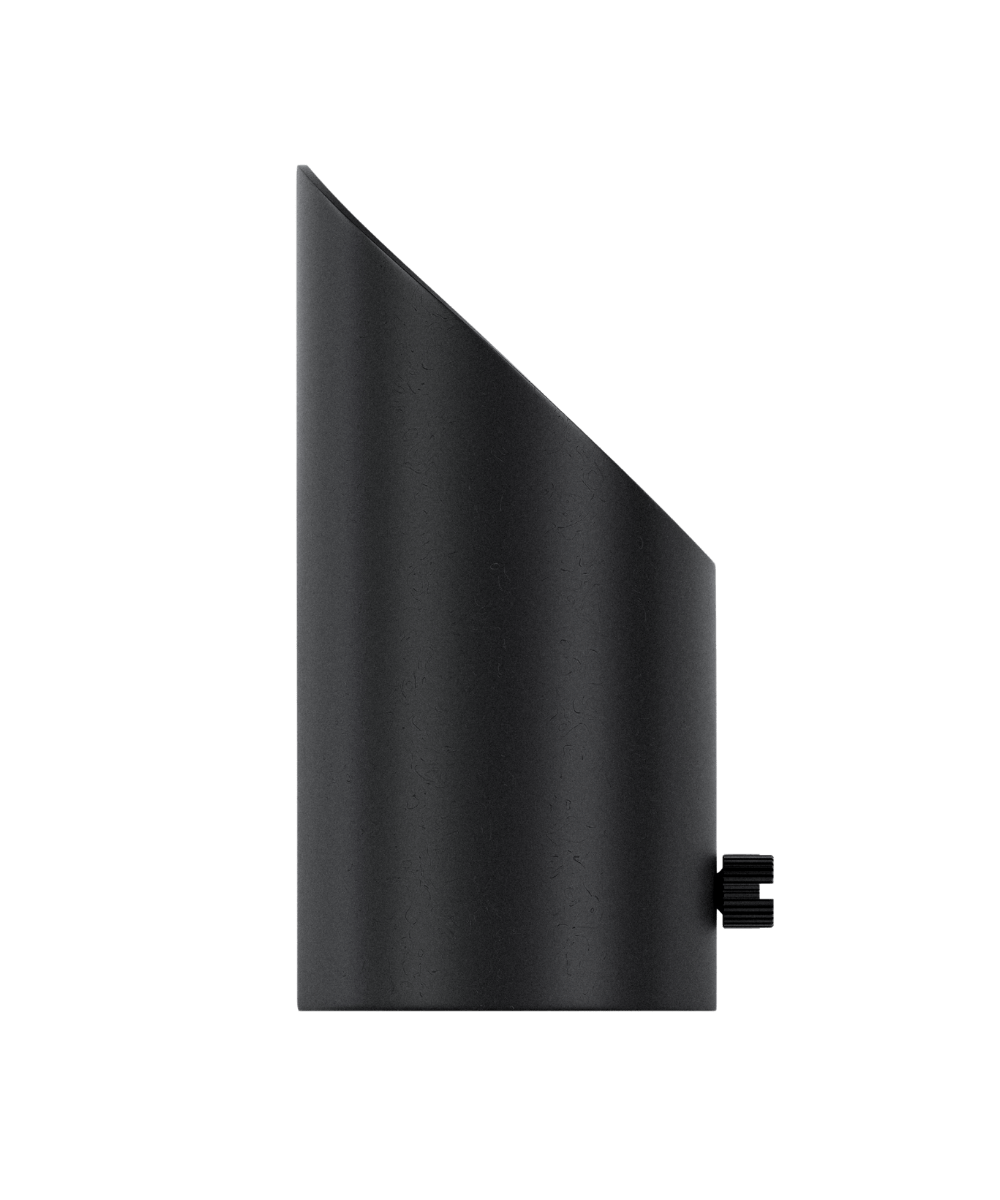

Bullet Light Shroud

This shroud delivers glare control for most ground-based uplighting. Perfect for uplighting on sculptural features, trees, facades, and other general landscape focal points. Its tapered shape and glare control design are ideal to allow front light to feather onto objects smoothly while blocking glare from the view behind the fixtures.

Additional Info

Patented Modular Design:
Assembled using Locklin’s Twist-lock system, this modular fixture snaps together wire-free with gold-plated connectors for corrosion-free, tool-free assembly. Designed for mounting to patios, walls, and other flat hardscape surfaces.

Adjustable Color Temperature:
Push-button toggle between 2700K and 3000K
(Hold 5 seconds to switch)

Adjustable Lumen Output:
• Press once: 3W
• Press twice: 5W
• Press three times: 7W

Lumen Output (2700K):
• 3W – 170 lm
• 5W – 292 lm
• 7W – 399 lm

Lumen Output (3000K):
• 3W – 180 lm
• 5W – 310 lm
• 7W – 425 lm

Fixed Knuckle:
Slimline, low-profile fixed knuckle delivers consistent beam direction without rotation or tilt—ideal for static accent lighting on walls or pillars.

Optics:
• 60° optic pre-installed.
• 36° optic included.
• Optional 15° and 7° available separately.
• 120° spread achieved by removing optics.

Glare Control:
Includes integrated Honeycomb Louver.

Power Base Wire Lead:
25’ lead included with Surface Mount Power Base.

Certifications:
ETL Listed
IP68 Rated
CRI: 93.4
TM-30 RF: 94
TM-30 RG: 99
Power Factor: 0.893 @ 12VAC

Do you need a professional installer? Contact us now!

Built to Outperform.

Engineered to Endure.

The Locklin Landscape Lighting Series is a modular lighting solution designed to make outdoor illumination effortless for both professionals and DIY enthusiasts. Its innovative architecture features core components that twist and lock together in seconds—no tools, no rewiring, just pure simplicity.
