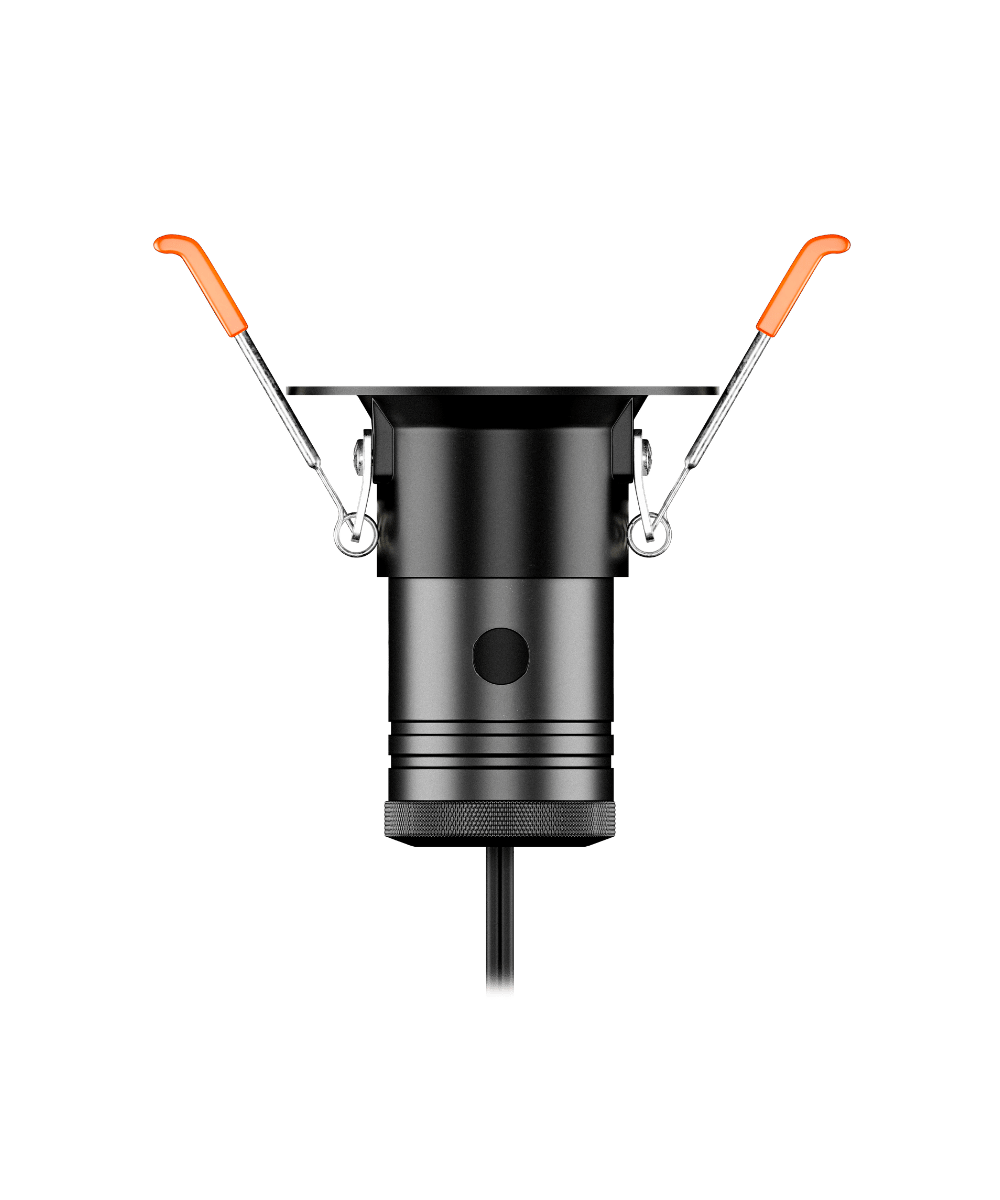

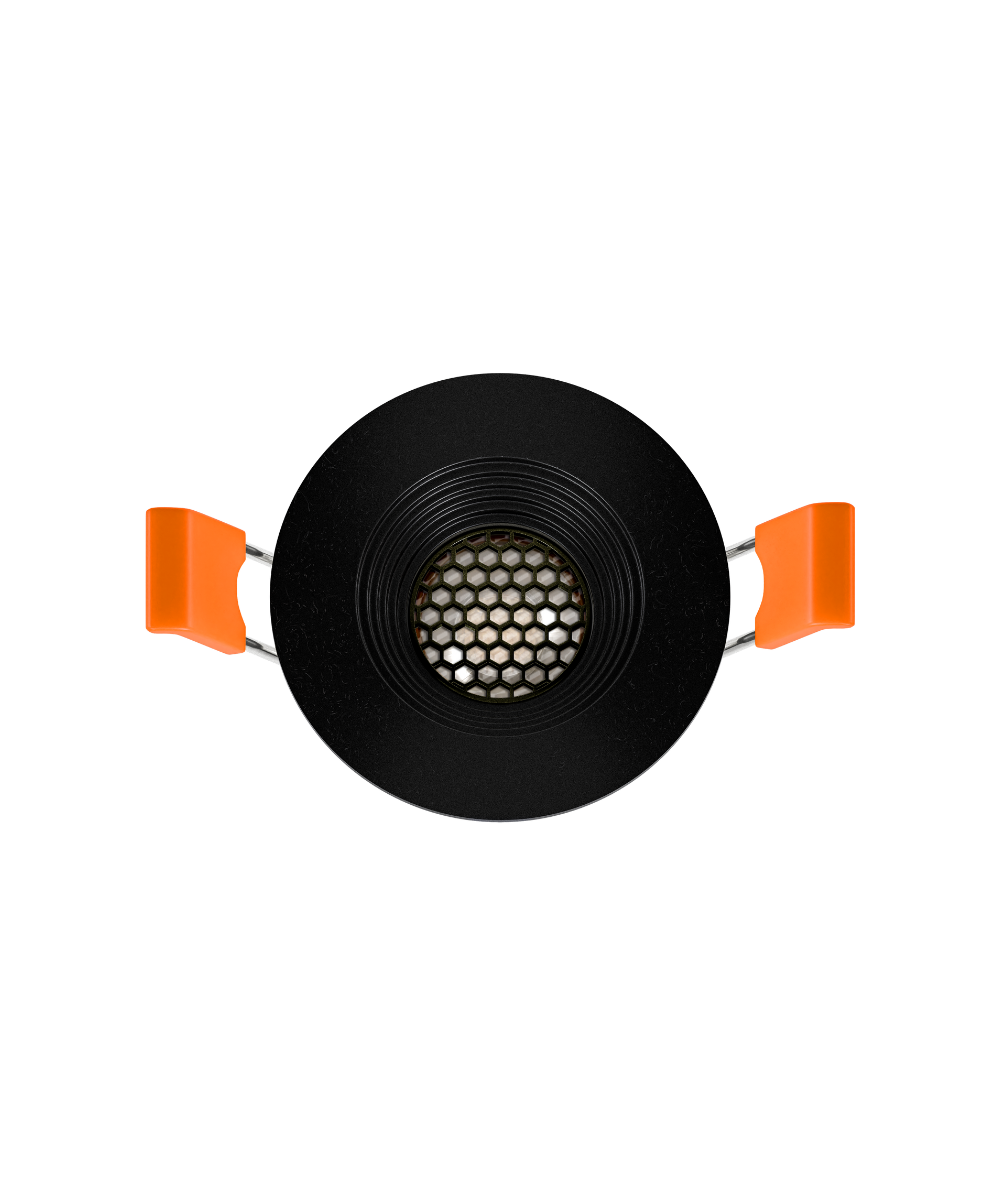

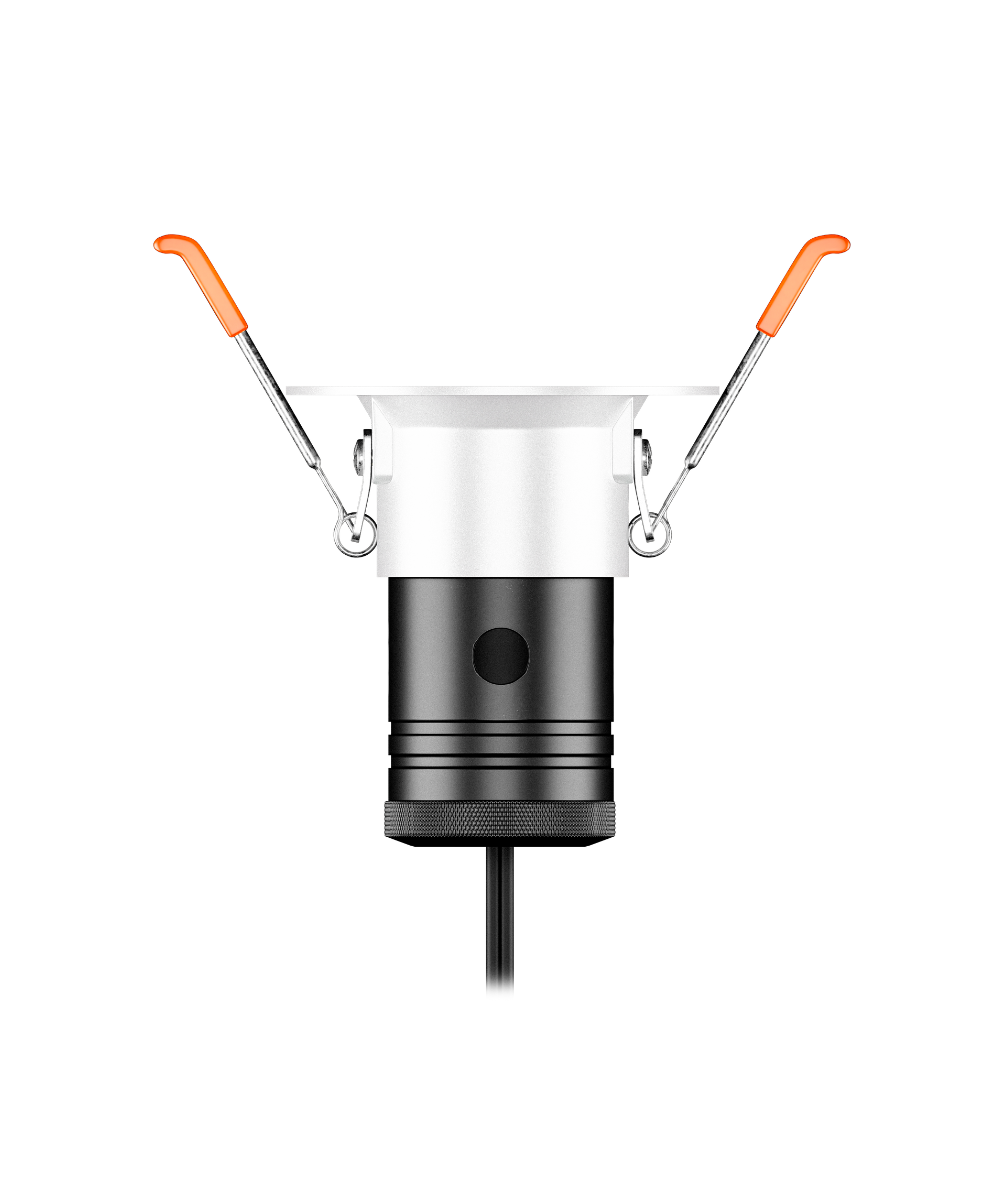

Recessed Can Light

Locklin Series•Pre-Configured Fixtures

From: $290.20

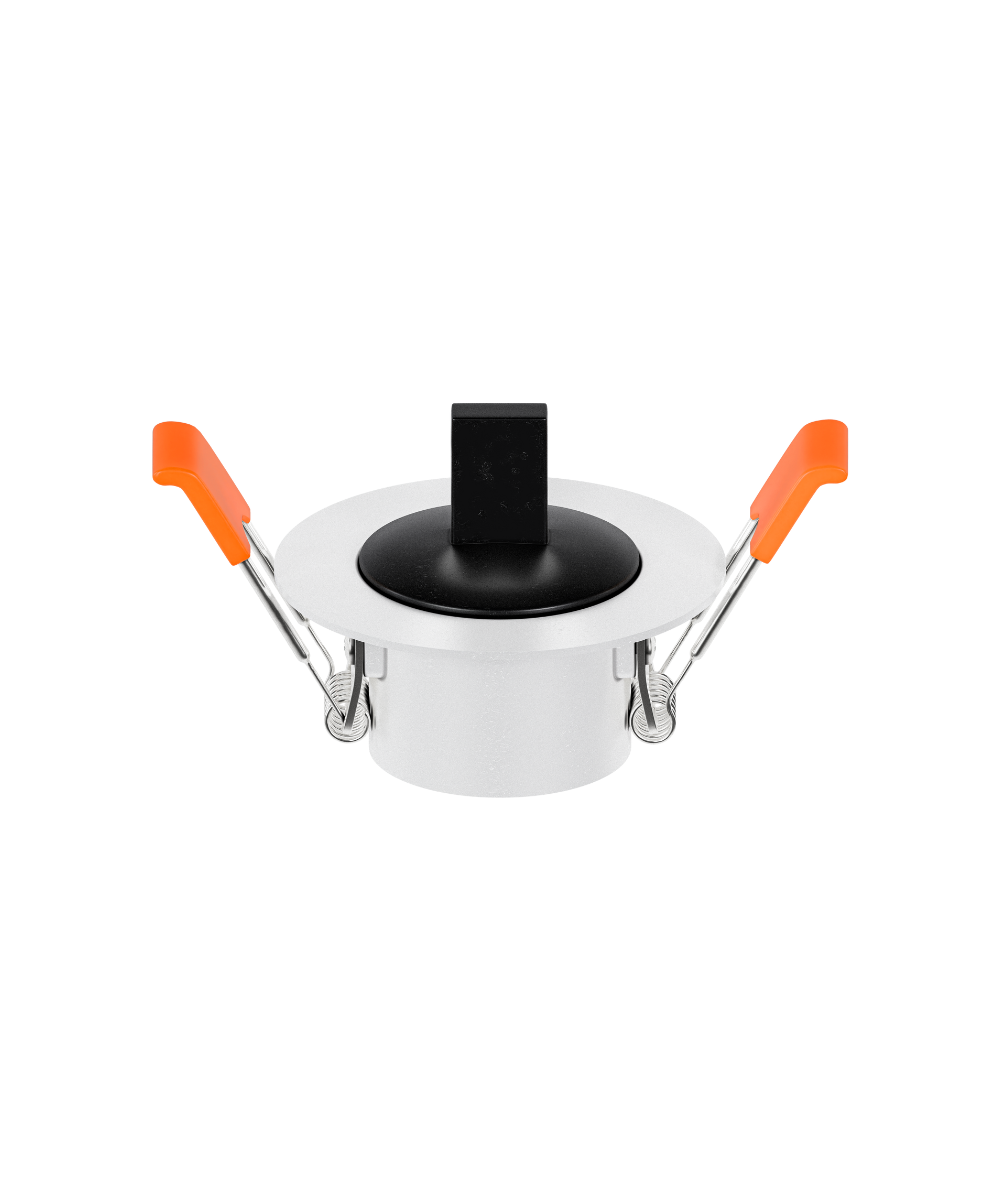

The Recessed Can Light creates a clean, flush solution for downlighting from soffits, overhanging eaves, and patio covers with ease.

An optional paint plug is included with the white finish, but not included with Black.

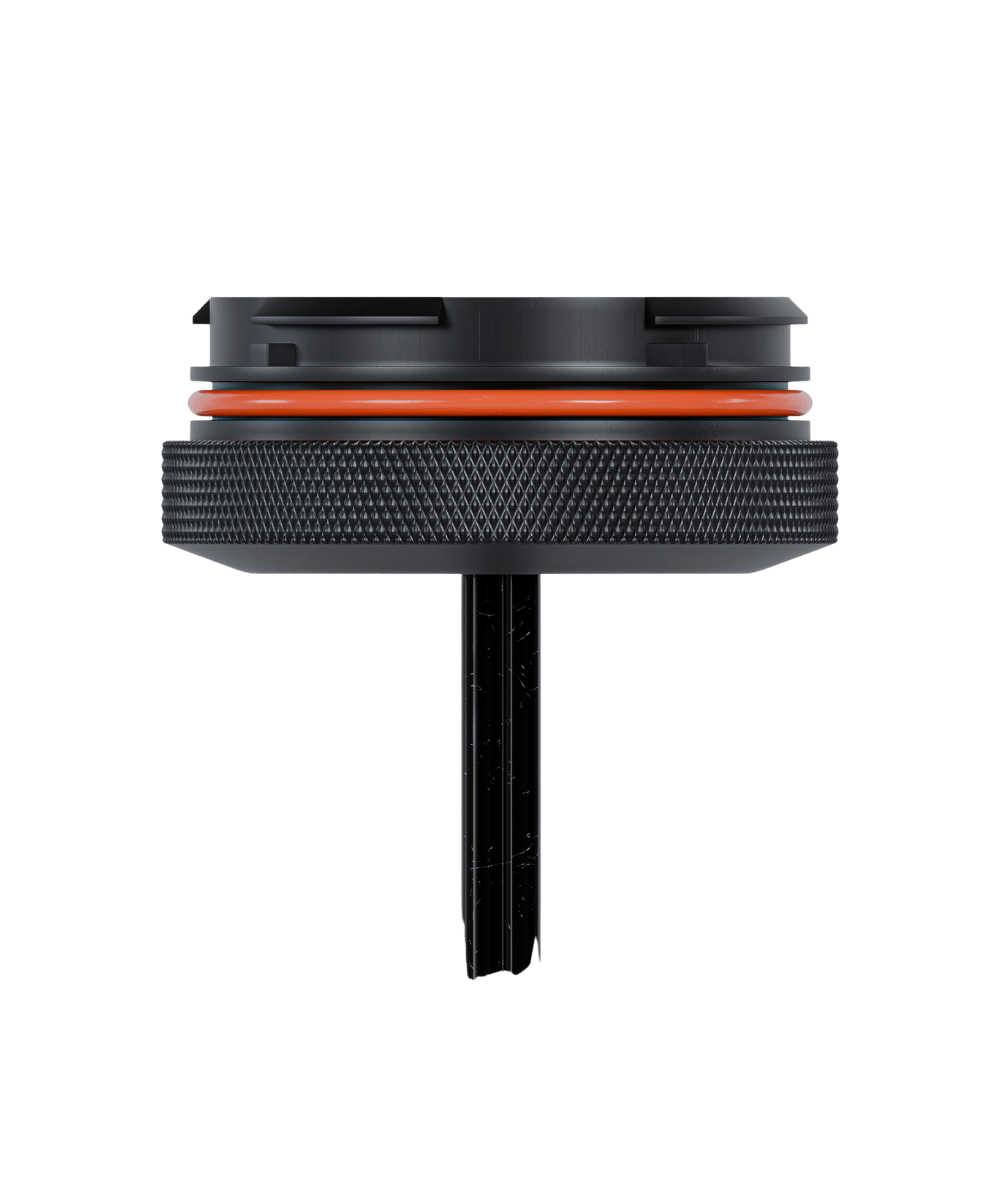

CHS006 – Recessed Can Light Mount Power Base Front

Recessed Can Light Power Base

Designed for tight spaces, Nightscaping’s Recessed Can Light Mount Power Base is built to fit comfortably into any soffit, ceiling, or overhead space. Equipped with a 3' lead and thin profile, it attaches cleanly to the Locklin LED Module with Nightscaping's patent pending Twist-lock connection, offering maximum flexibility in confined spaces.

Adaptive LED Module

The Locklin Series, Twist-lock, LED Module offers push-button toggling between 2700K and 3000K, with adjustable output at 3W, 5W, or 7W. Integrated, interchangeable optics of 7˚, 15˚, 36˚, 60˚ and 120˚(achieved by removing lens), honeycomb louver, and gold-plated connectors ensure tool-free installation and professional-grade performance.

Optical Lens

These interchangeable optical lenses allow for customizable beam angles—7°, 15°, 36°, and 60°—to match any lighting application within the Locklin Series.

Yes, Add Options from $12.92

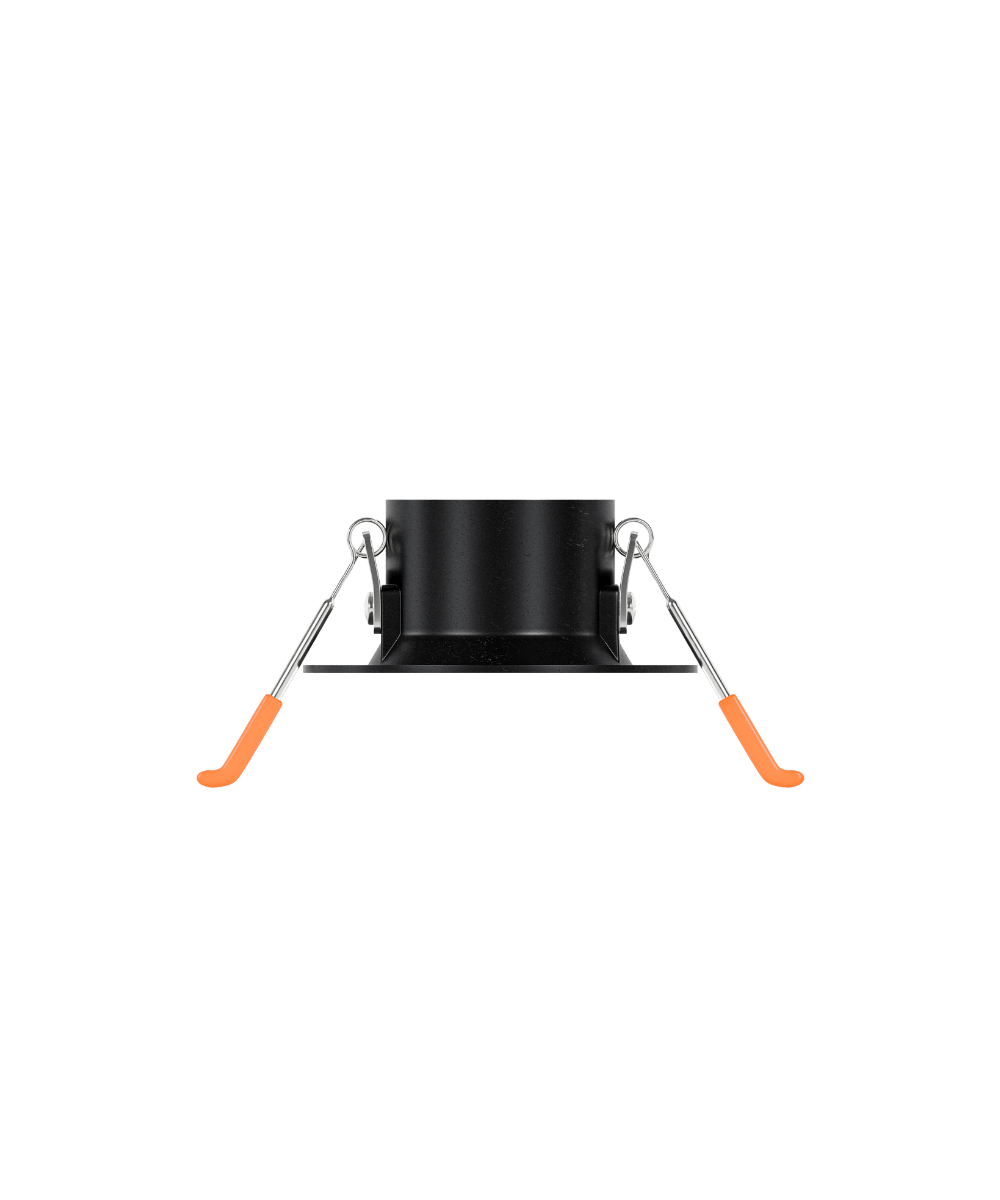

Recessed Can Light Shroud

The Recessed Can Light Shroud creates a clean, flush solution for downlighting from soffits, overhanging eaves, and patio covers.

Finishes

Clear

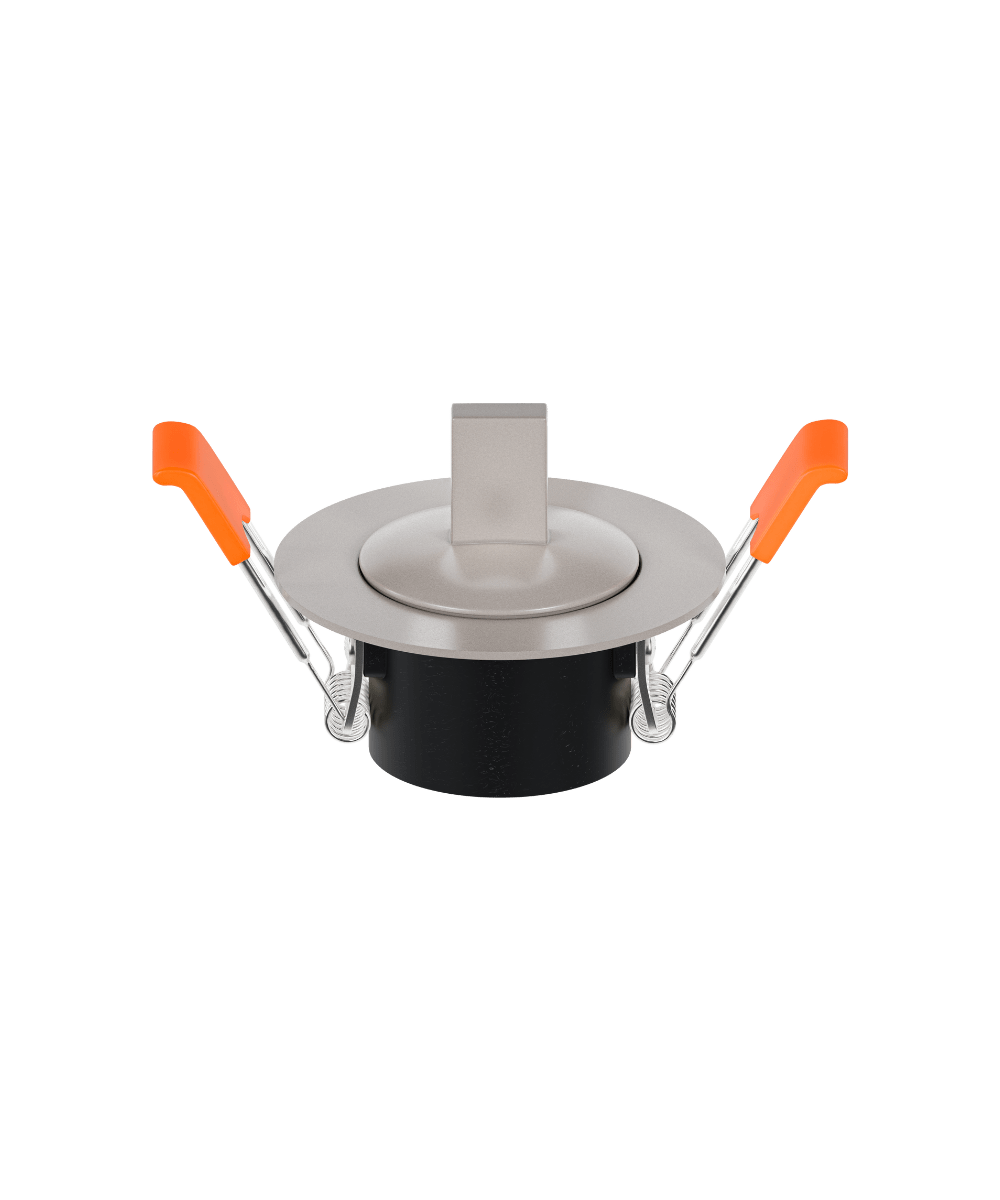

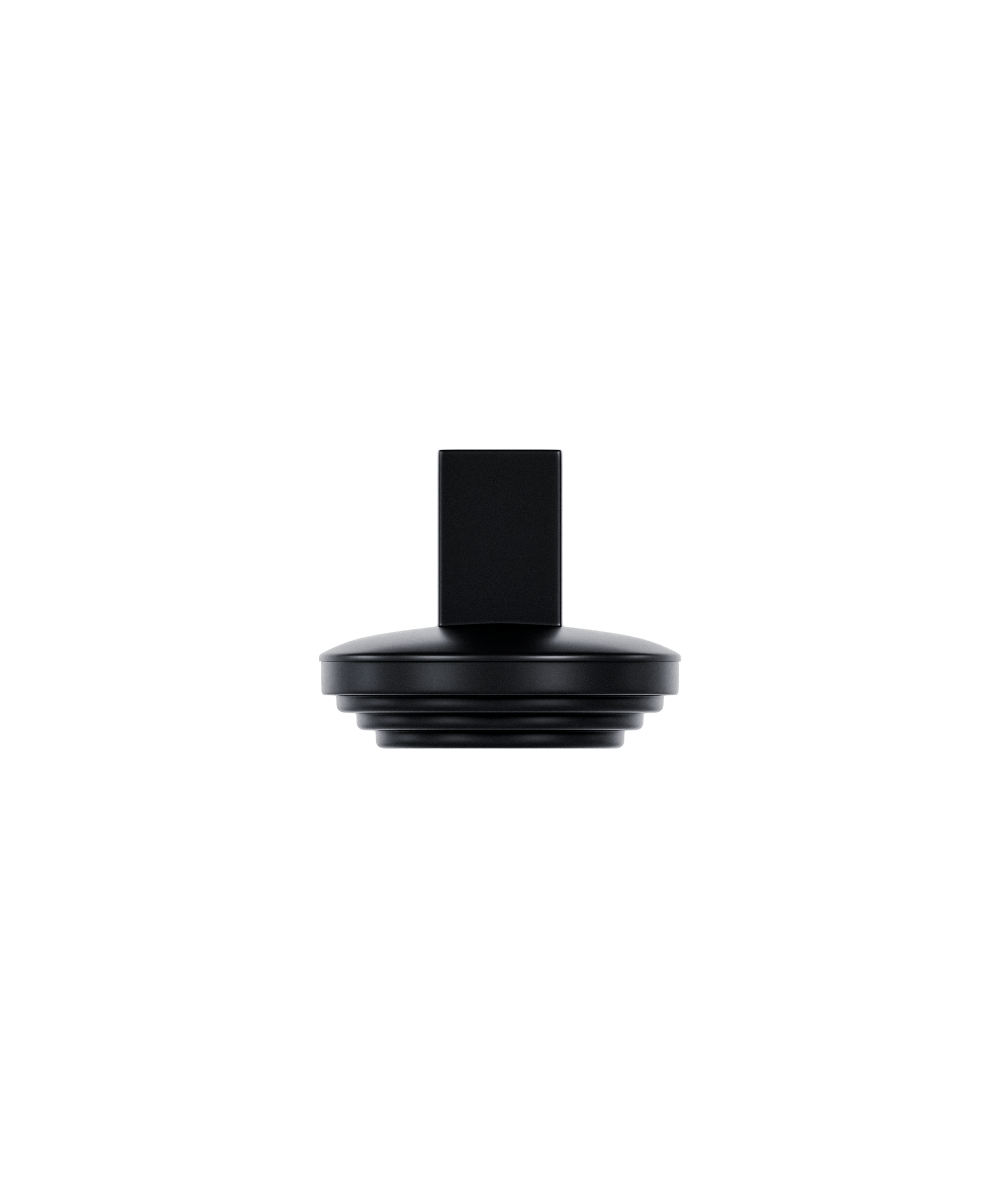

Recessed Can Light Masking Paint Plug

This protective plug shields the Recessed Can Light’s internal components during painting—no taping required.

Yes, Add for $21.84

Additional Info / Specification Sheets

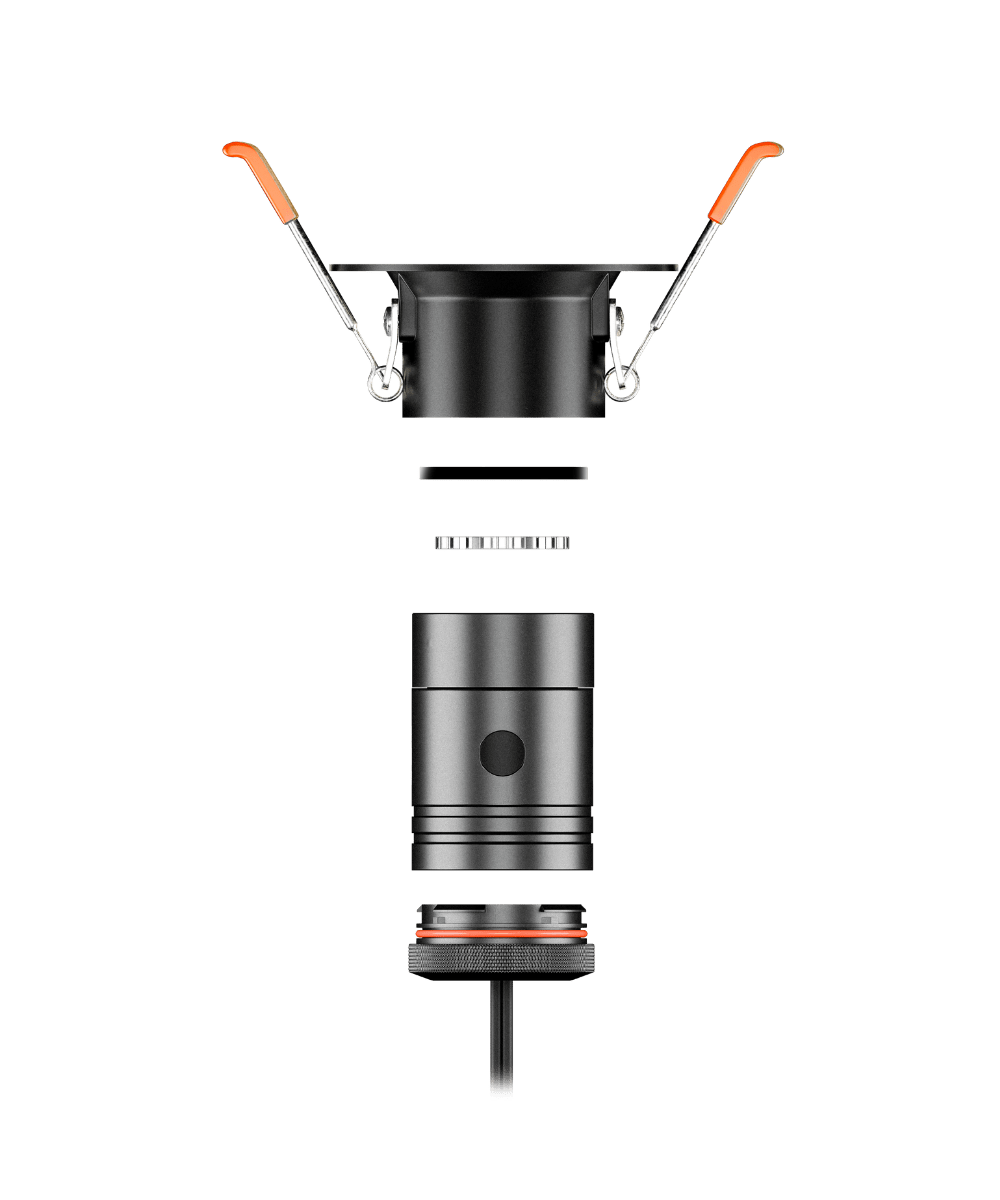

Patented Modular Design:
The Locklin Recessed Can Light is built using Nightscaping’s Twist-lock system with wireless, gold-plated connectors for tool-free installation. Designed to be used for outdoor soffits, architectural overhangs, and ceilings inside patio structures.

Flush-Mount Form Factor:
The integrated Recessed Can Light Shroud is pre-installed within the housing to deliver subtle, directional light without exposing hardware or creating glare. No visible fasteners, no tilt — just a clean architectural finish.

Adjustable Color Temperature:
Push-button toggle between 2700K and 3000K
(Hold 5 seconds to switch)

Adjustable Lumen Output:
• Press once: 3W
• Press twice: 5W
• Press three times: 7W

Lumen Output (2700K):
• 3W – 170 lm
• 5W – 292 lm
• 7W – 399 lm

Lumen Output (3000K):
• 3W – 180 lm
• 5W – 310 lm
• 7W – 425 lm

Optics:
• 60° optic pre-installed.
• 36° optic included.
• Optional 15° and 7° available separately.
• 120° spread achieved by removing optics.
• Color-coded lenses for easy identification.

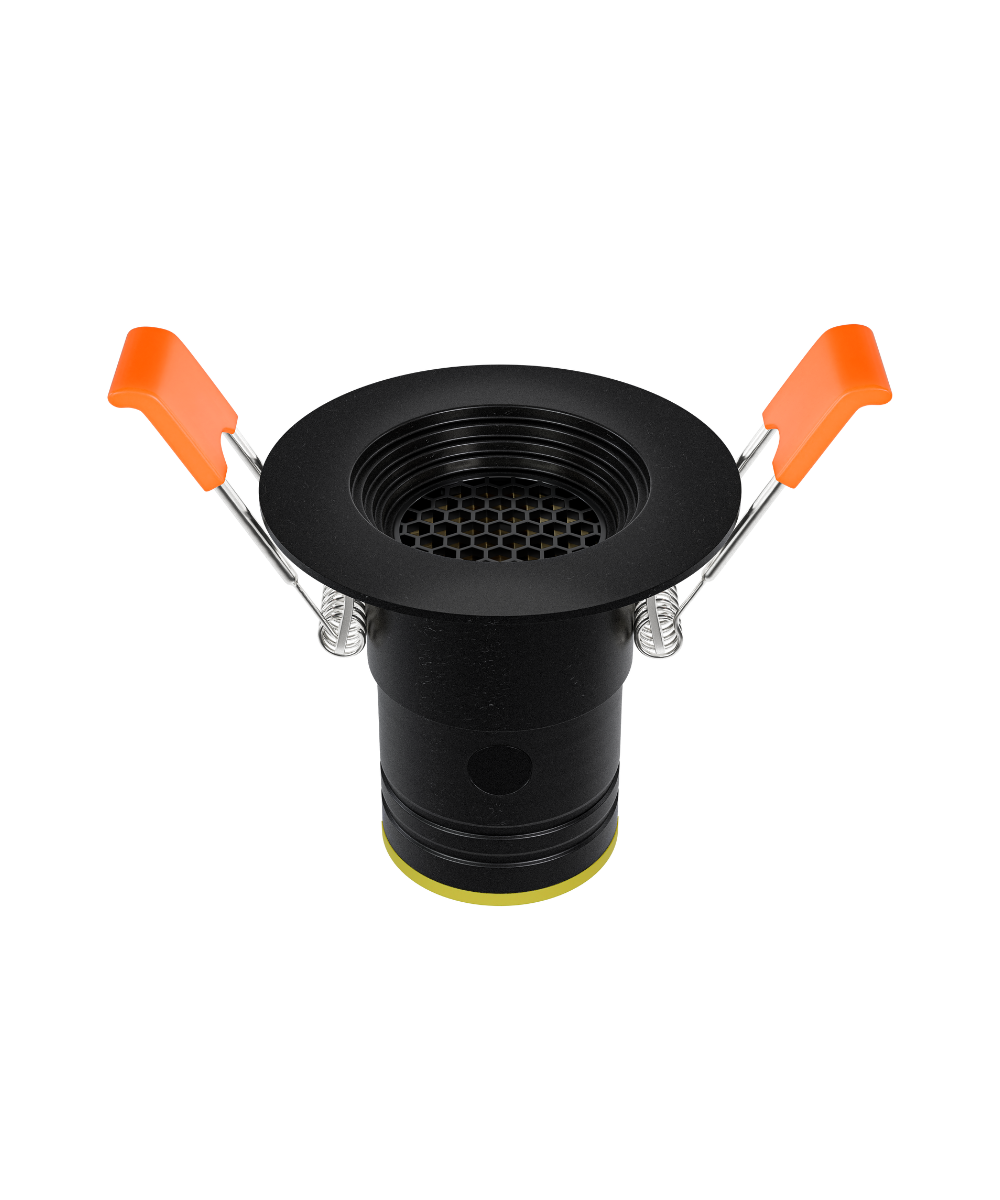

Glare Control:
Includes integrated Honeycomb Louver.
Recessed Can Light Masking Paint Plug sold separately for white fixtures to assist with field painting.

Power Base Wire Lead:
3’ lead pre-installed in the Recessed Can Light Power Base.

Certifications:
ETL Listed
IP68 Rated
CRI: 93.4
TM-30 RF: 94
TM-30 RG: 99
Power Factor: 0.893 @ 12VAC

Download Spec Sheet

Do you need a professional installer? Contact us now!

Built to Outperform.

Engineered to Endure.

The Locklin Landscape Lighting Series is a modular lighting solution designed to make outdoor illumination effortless for both professionals and DIY enthusiasts. Its innovative architecture features core components that twist and lock together in seconds—no tools, no rewiring, just pure simplicity.
