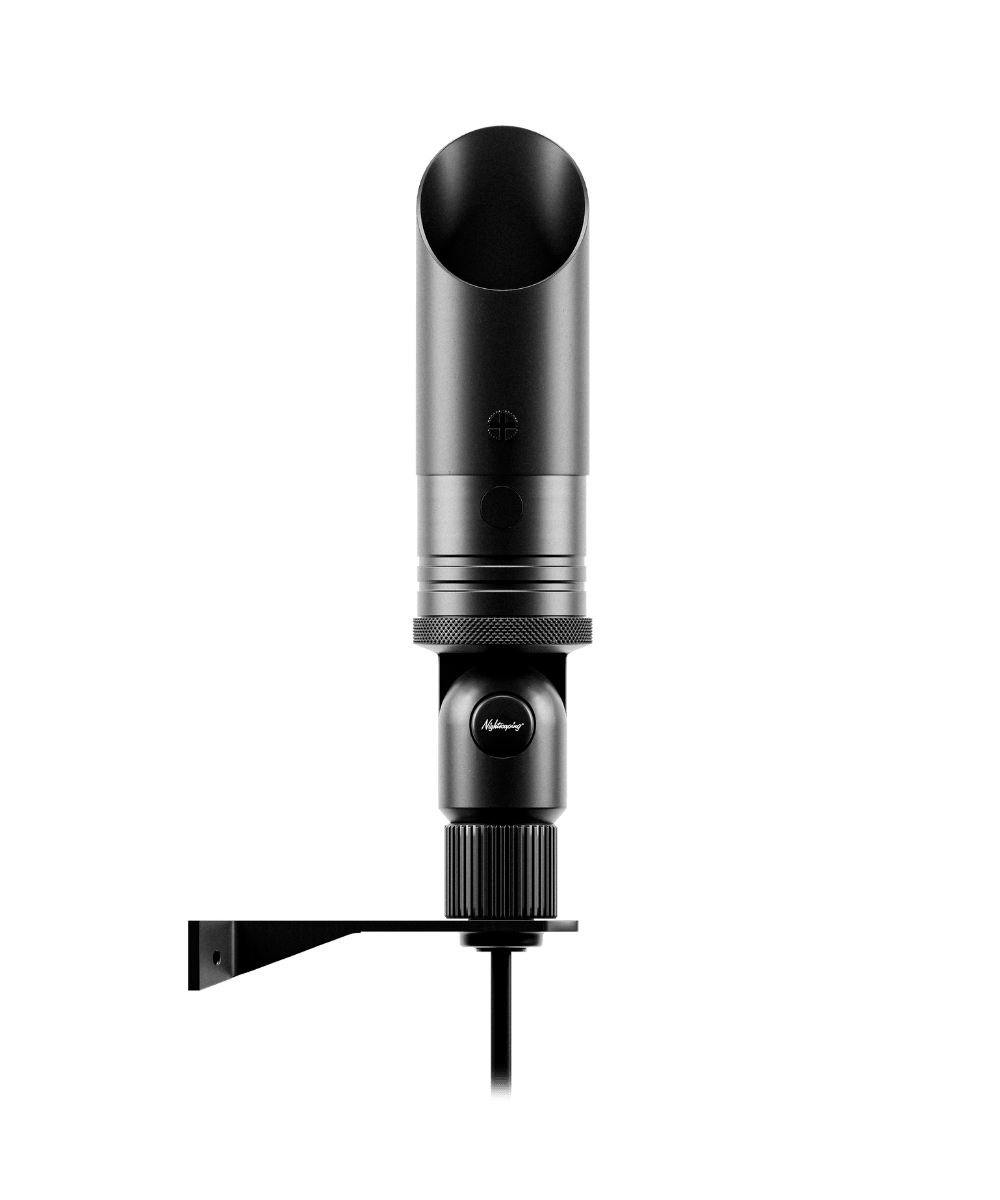

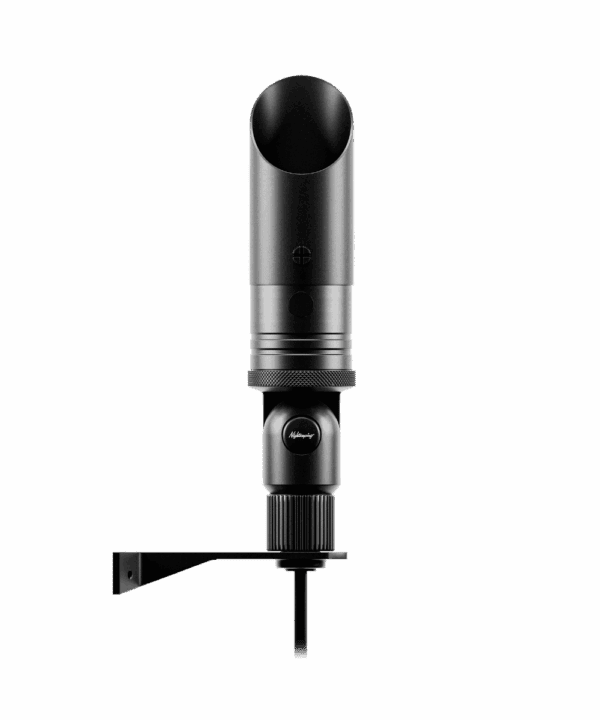

Gutter Mount Power Base - Adjustable Knuckle Assembled

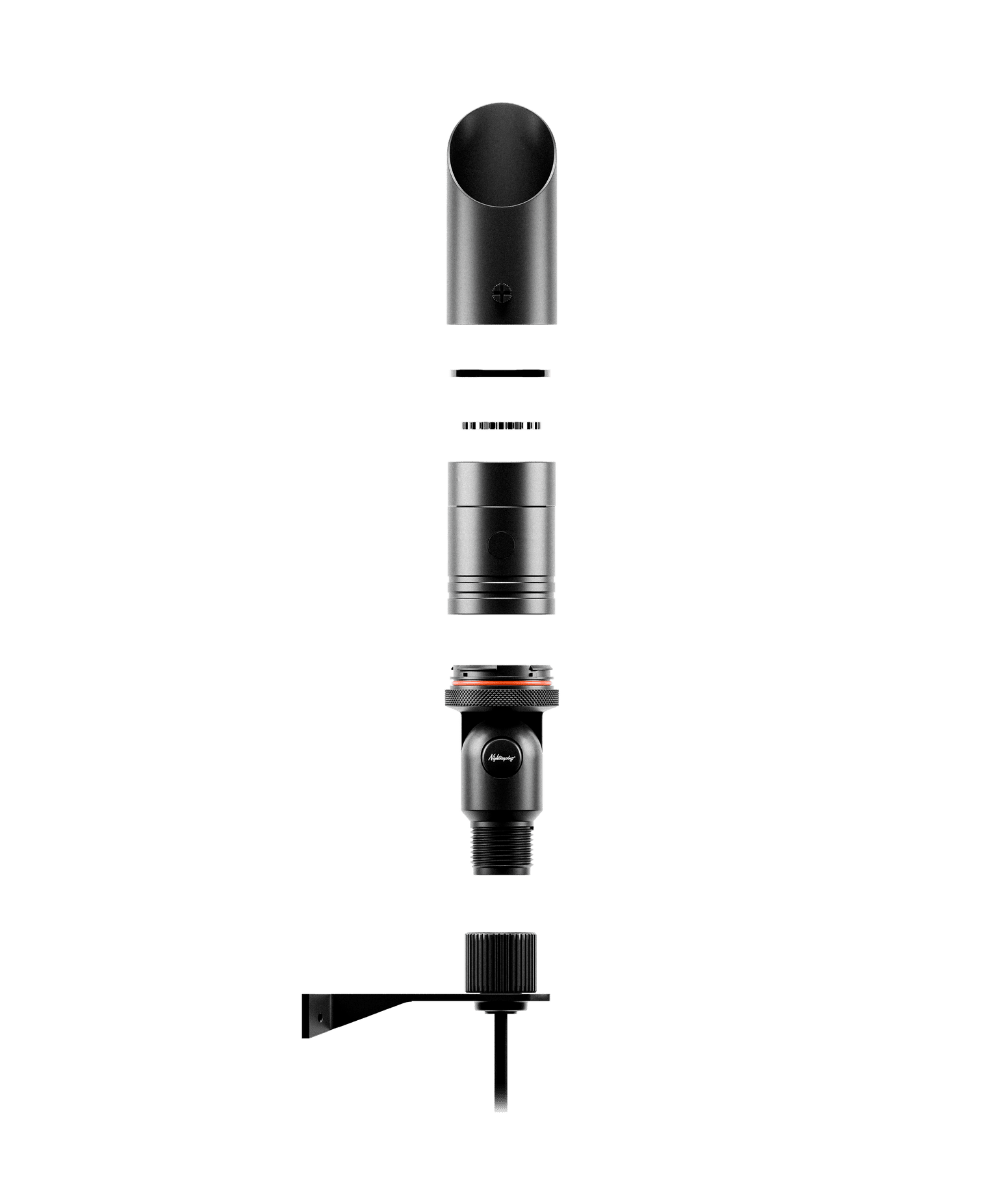

Gutter Mount Power Base - Adjustable Knuckle Extended

Gutter Mount Bullet Light with Adjustable Knuckle

Locklin Series•Pre-Built Fixtures

From: $467.78

Perfect for rooflines and fascia boards, this uplight combines Nightscaping’s patent pending gutter mount power base with wireless adjustability. Light architectural features or landscaping from above.

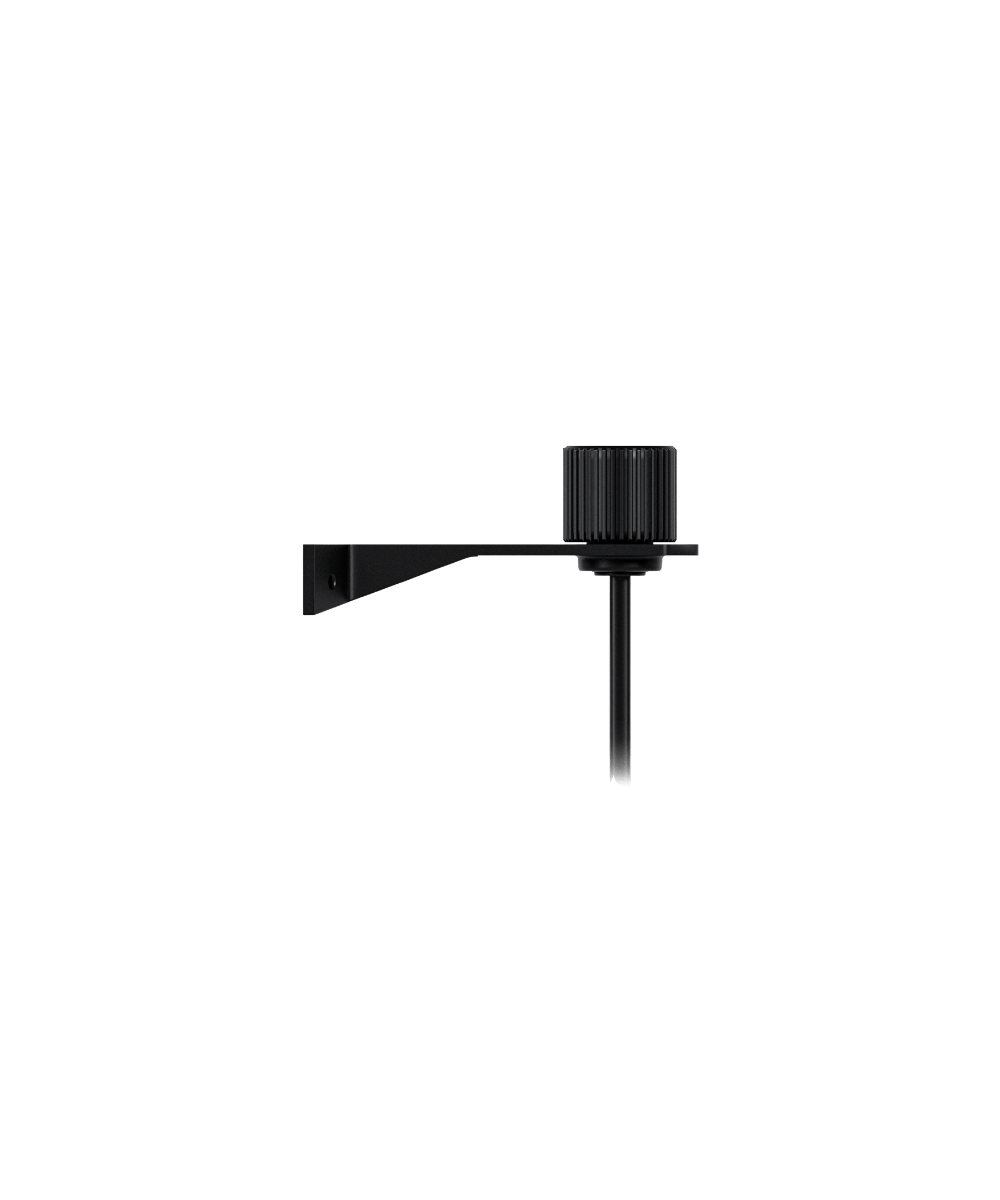

Gutter Mount Power Base

Nightscaping's patent pending Gutter Mount Power Base easily attaches to the gutter and requires no tools for adjustments once installed. Perfect for illuminating dormers or upper-level architecture. The revolutionary is one of the most simplistic mounts in the industry. Simply mount to the fascia board or gutter and Twist-lock the fixture into your desired position.

Adjustable Knuckle

This wireless knuckle when combined with the Locklin Series Power Bases allows for 360° fixture rotation and tilt. The push-button adjustability and aerospace-grade gold connectors make it like nothing else on the market. Built to last, it provides ultimate control for aiming the Locklin fixtures with precision and ease.

Adaptive LED Module

The Locklin Series, Twist-lock, LED Module offers push-button toggling between 2700K and 3000K, with adjustable output at 3W, 5W, or 7W. Integrated, interchangeable optics of 7˚, 15˚, 36˚, 60˚ and 120˚(achieved by removing lens), honeycomb louver, and gold-plated connectors ensure tool-free installation and professional-grade performance.

Optical Lens

These interchangeable optical lenses allow for customizable beam angles—7°, 15°, 36°, and 60°—to match any lighting application within the Locklin Series.

Yes, Add Options from $12.92

Bullet Light Shroud

This shroud delivers glare control for most ground-based uplighting. Perfect for uplighting on sculptural features, trees, facades, and other general landscape focal points. Its tapered shape and glare control design are ideal to allow front light to feather onto objects smoothly while blocking glare from the view behind the fixtures.

Additional Info

Patented Modular Design:
Utilizes the Twist-lock wireless system for secure, tool-free assembly. Mounts directly to fascia boards or gutters using Nightscaping’s Gutter Mount.

Adjustable Color Temperature:
Push-button toggle between 2700K and 3000K
(Hold 5 seconds to switch)

Adjustable Lumen Output:
• Press once: 3W
• Press twice: 5W
• Press three times: 7W

Lumen Output (2700K):
• 3W – 170 lm
• 5W – 292 lm
• 7W – 399 lm

Lumen Output (3000K):
• 3W – 180 lm
• 5W – 310 lm
• 7W – 425 lm

Adjustable Knuckle:
Push-button adjustable for full aiming flexibility from above—ideal for architectural uplighting, gutter-mounted installs, or second-story lighting.

Optics:
• 60° optic pre-installed.
• 36° optic included.
• Optional 15° and 7° available separately.
• 120° spread achieved by removing optics.
• Color-coded lenses for easy identification.

Glare Control:
Includes integrated Honeycomb Louver.

Power Base Wire Lead:
3’ lead included with Gutter Mount Power Base.

Certifications:
ETL Listed
IP68 Rated
CRI: 93.4
TM-30 RF: 94
TM-30 RG: 99
Power Factor: 0.893 @ 12VAC

Do you need a professional installer? Contact us now!

Built to Outperform.

Engineered to Endure.

The Locklin Landscape Lighting Series is a modular lighting solution designed to make outdoor illumination effortless for both professionals and DIY enthusiasts. Its innovative architecture features core components that twist and lock together in seconds—no tools, no rewiring, just pure simplicity.
