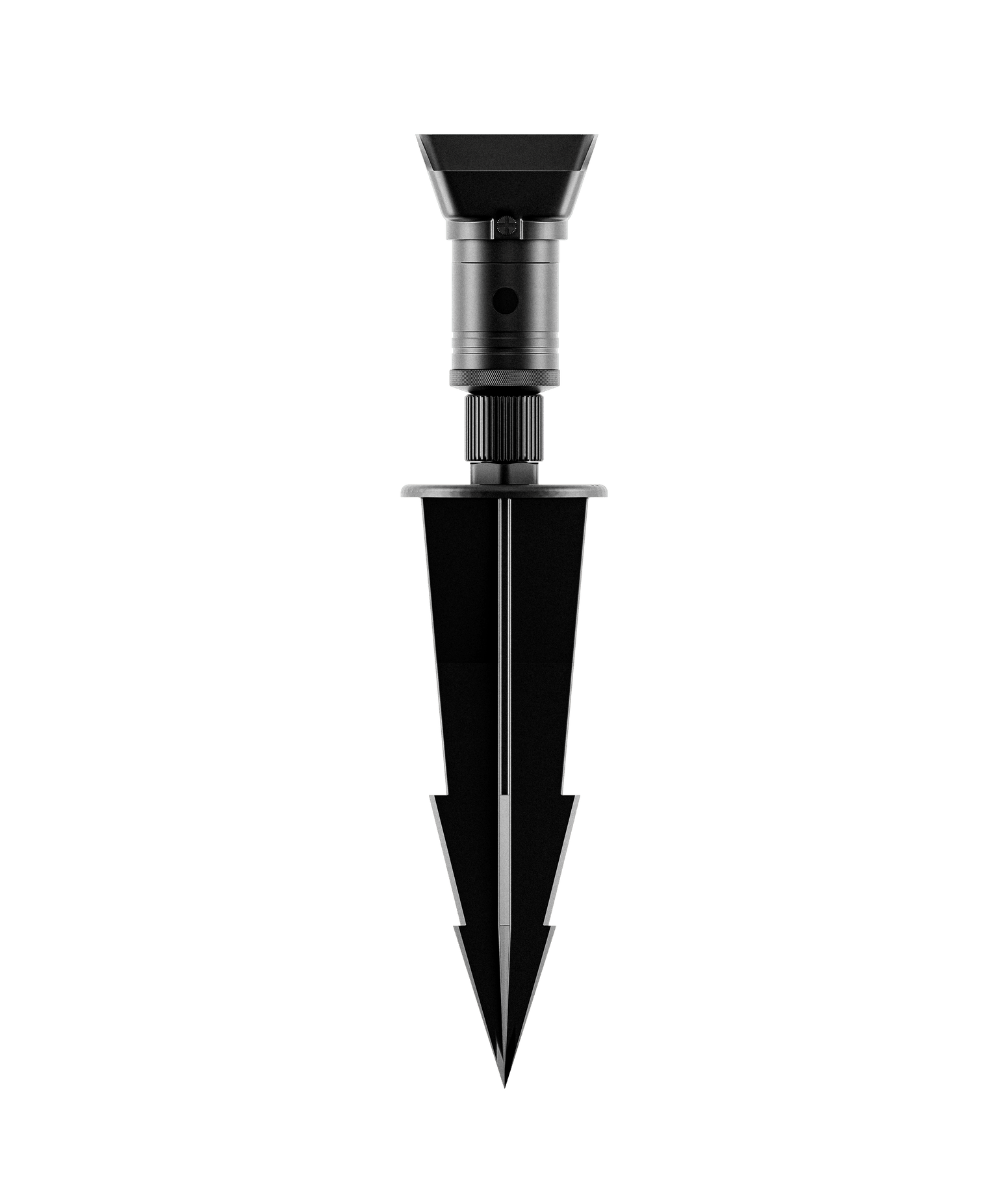

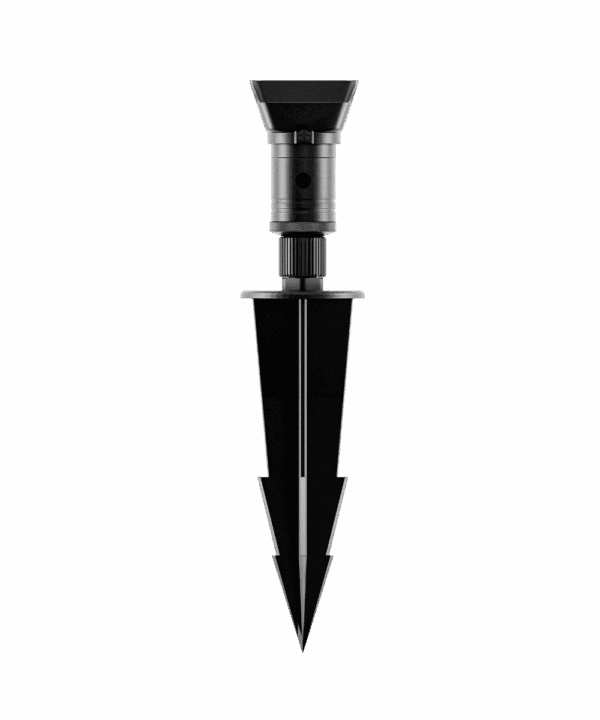

ABS Stake Mount Power - Fixed Knuckle Assembled

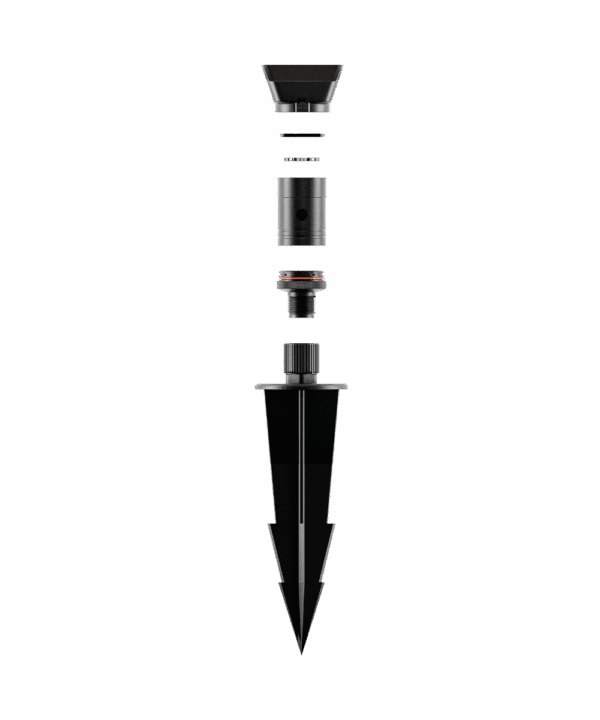

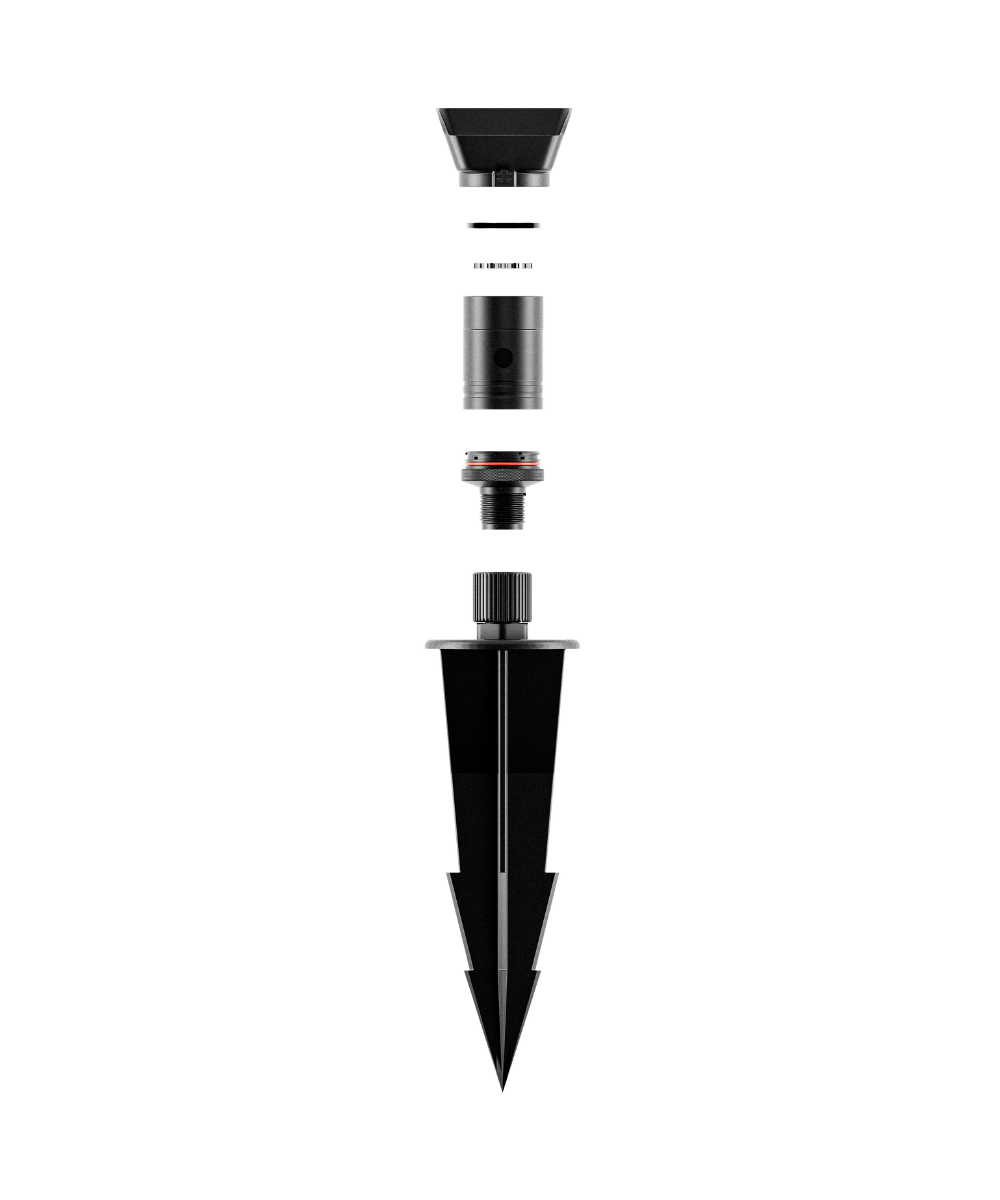

ABS Stake Mount Power - Fixed Knuckle Extended

ABS Stake Mount Wash Light with Fixed Knuckle

Locklin Series•Pre-Built Fixtures

From: $448.27

This wide-beam fixture brings smooth, ambient wash lighting to walls and small trees. The fixed knuckle delivers consistent uplighting coverage for columns, garden art, and low architectural features that are situated in mulch and garden beds away from grass.

ABS Stake Mount Power Base

Nightscaping’s ABS Stake Mount Power Base is built on Nightscaping's patent pending Twist-lock connection system. The ABS Stake Mount Power Base features wireless gold-plated connectors for tool-free installation and long-term corrosion resistance. Crafted from high-impact ABS plastic with a 25’ lead, it offers a durable, corrosion-resistant foundation for Locklin Series fixtures—ideal for garden beds, turf, and mulch zones.

Fixed Knuckle

Nightscaping’s Fixed Knuckle provides a clean, locked-in-place solution for applications where directional lighting isn't needed, such as architectural uplighting and wall grazing. It ensures a compact profile while maintaining the Locklin Series’ signature Twist-lock wireless modularity.

Adaptive LED Module

The Locklin Series, Twist-lock, LED Module offers push-button toggling between 2700K and 3000K, with adjustable output at 3W, 5W, or 7W. Integrated, interchangeable optics of 7˚, 15˚, 36˚, 60˚ and 120˚(achieved by removing lens), honeycomb louver, and gold-plated connectors ensure tool-free installation and professional-grade performance.

Optical Lens

These interchangeable optical lenses allow for customizable beam angles—7°, 15°, 36°, and 60°—to match any lighting application within the Locklin Series.

Yes, Add Options from $12.92

Wash Light Shroud

The Wash Light Shroud offers a wider beam with its built-in linear spread lens. This offers soft, ambient lighting across plant beds, walls, and pathways. A go-to choice for balanced, subtle illumination with architectural appeal.

Additional Info

Patented Modular Design:
Built with Locklin’s Twist-lock snap-in system and gold-plated connectors, this fixture installs directly into mulch using a durable ABS stake.

Adjustable Color Temperature:
Push-button toggle between 2700K and 3000K
(Hold 5 seconds to switch)

Adjustable Lumen Output:
• Press once: 3W
• Press twice: 5W
• Press three times: 7W

Lumen Output (2700K):
• 3W – 170 lm
• 5W – 292 lm
• 7W – 399 lm

Lumen Output (3000K):
• 3W – 180 lm
• 5W – 310 lm
• 7W – 425 lm

Fixed Knuckle:
Low-profile, non-adjustable mount designed to provide consistent wash lighting for short walls, small trees, and garden art.

Optics:
• 60° optic pre-installed.
• 36° optic included.
• Optional 15° and 7° available separately.
• 120° spread achieved by removing optics.
• Color-coded lenses for easy identification.

Power Base Wire Lead:
25’ lead included with ABS Stake Mount Power Base.

Certifications:
ETL Listed
IP68 Rated
CRI: 93.4
TM-30 RF: 94
TM-30 RG: 99
Power Factor: 0.893 @ 12VAC

Do you need a professional installer? Contact us now!

Built to Outperform.

Engineered to Endure.

The Locklin Landscape Lighting Series is a modular lighting solution designed to make outdoor illumination effortless for both professionals and DIY enthusiasts. Its innovative architecture features core components that twist and lock together in seconds—no tools, no rewiring, just pure simplicity.
